Fortior FD6288
The special HVIC technology can realize stable monolithic structure. The output driver has a high pulse current buffer stage, which aims to achieve a minimum driver impedance.| Part No. | FD6288 |
|---|---|
| Datasheet | FD6288 Download |
| Manufacturer | Fortior |
| Description | 3-PHASE BRIDGE DRIVER |
| Buy | Stock & Price |

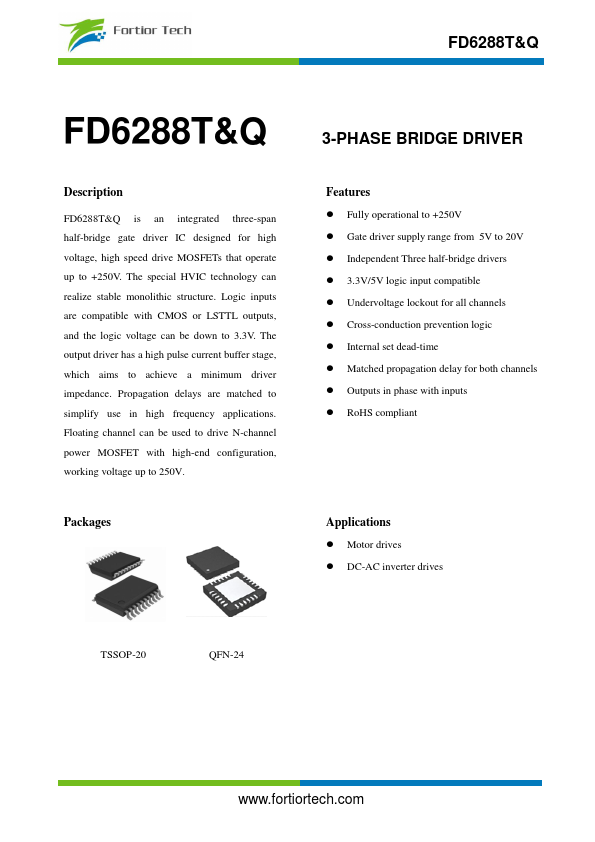

DESCRIPTION
FD6288T&Q is an integrated three-span half-bridge gate driver IC designed for high voltage, high speed drive MOSFETs that operate up to +250V. Logic inputs are compatible with CMOS or LSTTL outputs, and the logic voltage can be down to 3.3V. Propagation delays are matched to simplify use in high frequency applications. Floating channel can be used to drive N-channel power MOSFET with high-end configuration, working voltage up to 250V. Packages 3-PHASE BRIDGE DRIVERFEATURES
● Fully operational to +250V● Gate driver supply range from 5V to 20V
● Independent Three half-bridge drivers
● 3.3V/5V logic input compatible
● Undervoltage lockout for all channels
● Cross-conduction prevention logic
● Internal set dead-time
● Matched propagation delay for both channels
● Outputs in phase with inputs
● RoHS compliant
APPLICATIONS
● Motor drives● DC-AC inverter drives TSSOP-20 QFN-24 FD6288T&Q
ABSOLUTE MAXIMUM RATINGS
Absolute maximum ratings indicate sustained limits beyond which damage to the device may occur.
