MB7130 - High Speed Schottky TTL PROM

Description

The Fujitsu MB7130 is a high speed Schottky TIL electrically field programmable read only memory organized as 1024 words by 8-bits.

With three-state outputs on the MB7130, memory expansion is simple.

The memory is fabricated with all logic "zeros" (positive logic).

Features

  • Organization: 1024 words by 8-bits, fully decoded.
  • TIL compatible inputs/output.
  • Fast Access Time: MB713OE: 55 ns Max_ 30 ns Typ_ MB7130H: 45 ns Max_ 30 ns Typ_.
  • Proven high programmability and rellabilty of DEAPTM (Diffused Eutectic Aluminum Process).
  • Single +5V supply voltage.
  • Low current PNP inputs.
  • AC characteristics guaranteed over full operating voltage and temperature range via unique testing techniques.
  • Simplified.

📥 Download Datasheet

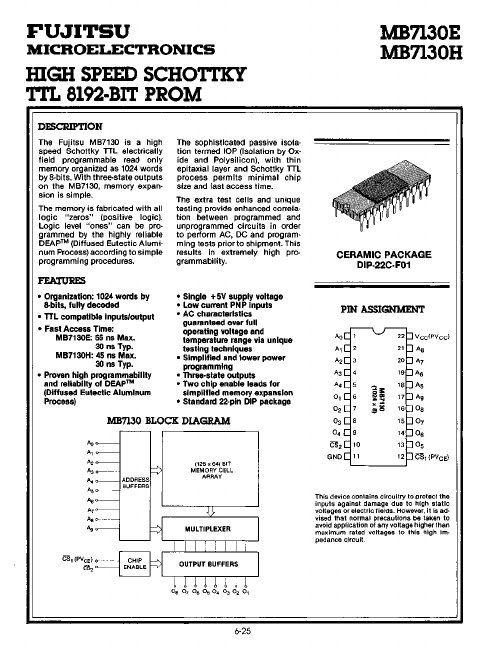

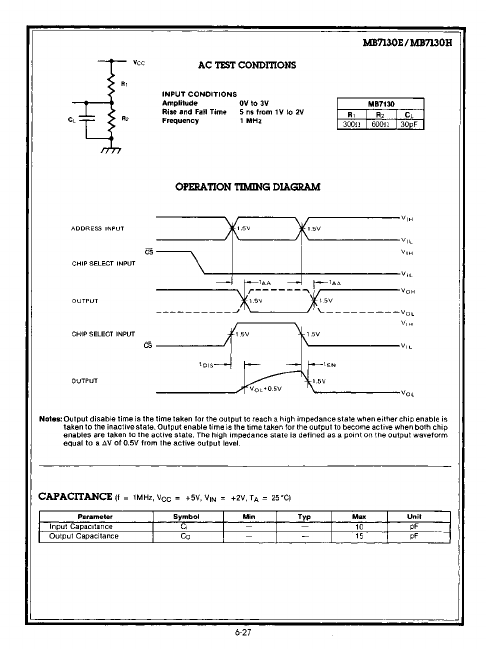

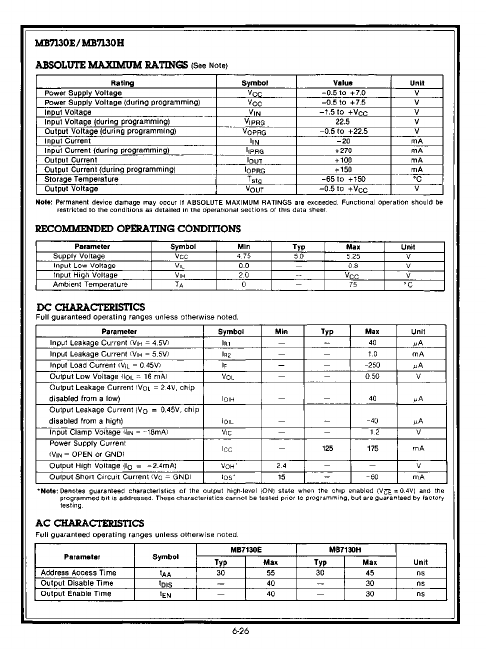

Datasheet preview – MB7130
