MB7130E Datasheet PDF (High Speed Schottky TTL PROM)

MB7130E - High Speed Schottky TTL PROM

This page provides the datasheet information for the MB7130E, a member of the MB7130 High Speed Schottky TTL PROM family.

Description

The Fujitsu MB7130 is a high speed Schottky TIL electrically field programmable read only memory organized as 1024 words by 8-bits.

With three-state outputs on the MB7130, memory expansion is simple.

The memory is fabricated with all logic "zeros" (positive logic).

Features

Organization: 1024 words by 8-bits, fully decoded.
TIL compatible inputs/output.

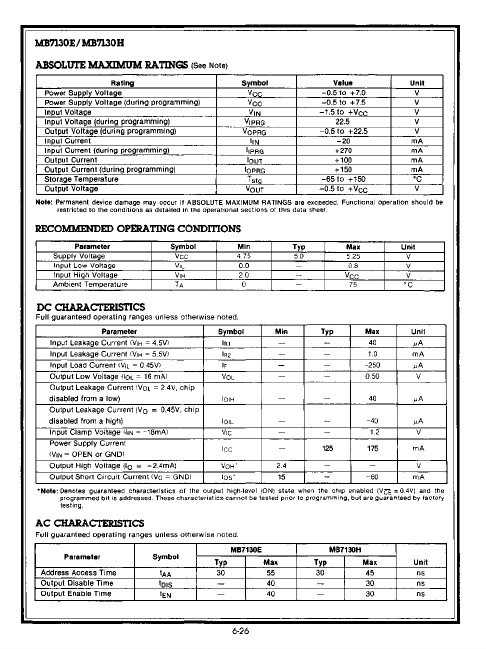

Fast Access Time: MB713OE: 55 ns Max_ 30 ns Typ_ MB7130H: 45 ns Max_ 30 ns Typ_.
Proven high programmability and rellabilty of DEAPTM (Diffused Eutectic Aluminum Process).
Single +5V supply voltage.
Low current PNP inputs.

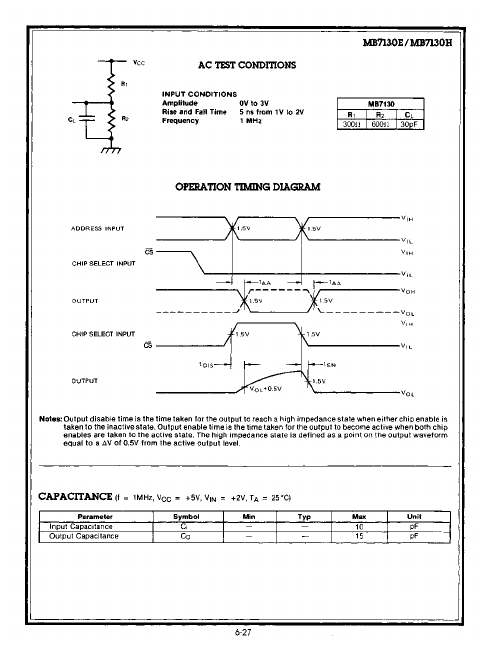

AC characteristics guaranteed over full operating voltage and temperature range via unique testing techniques.
Simplified.

Datasheet Details

Part number	MB7130E
Manufacturer	Fujitsu
File Size	90.06 KB
Description	High Speed Schottky TTL PROM
Datasheet	MB7130E Datasheet
Additional preview pages of the MB7130E datasheet.

📁 Similar Datasheet

MB7001 - High Performance Weather Resistant (IP67) Sonar Range Finder (MaxBotix)

MB7060 - Weather Resistant (IP67) Sonar Range Finder (MaxBotix)

MB7070 - Weather Resistant (IP67) Sonar Range Finder (MaxBotix)

MB7360 - HRXL-MaxSonar sensor (MaxBotix)

MB7363 - HRXL-MaxSonar sensor (MaxBotix)

MB7366 - HRXL-MaxSonar sensor (MaxBotix)

MB7367 - HRXL-MaxSonar sensor (MaxBotix)

MB7368 - HRXL-MaxSonar sensor (MaxBotix)

MB7369 - HRXL-MaxSonar sensor (MaxBotix)

MB7375 - HRXL-MaxSonar sensor (MaxBotix)

Full PDF Text Transcription

Click to expand full text

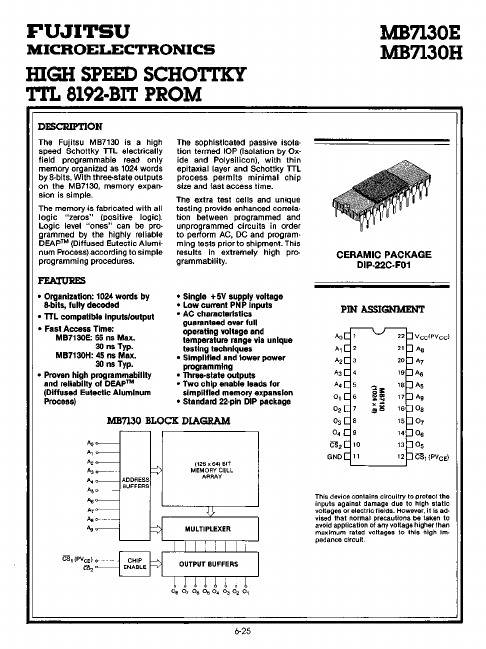

FUJITSU MICROELECTRONICS HIGH SPES.) SCHOTTKY TTL 8192·BIT PROM MB7130E MB7130H DESCRIPTION The Fujitsu MB7130 is a high speed Schottky TIL electrically field programmable read only memory organized as 1024 words by 8-bits. With three-state outputs on the MB7130, memory expansion is simple. The memory is fabricated with all logic "zeros" (positive logic). Logic level "ones" can be programmed by the highly reliable DEApTM (Diffused Eutectic Aluminum Process) according to simple programming procedures. The sophisticated passive isolation termed lOP (Isolation by Oxide and Polysilicon), with thin epitaxial layer and Schottky TIL process permits minimal chip size and fast access time.
