MB8418 - CMOS STATIC RANDOM ACCESS MEMORY

General Description

The Fujitsu MB8418/MB8418-X is a 2048 word by 8-bit static random access memory fabricated with high density, high reliability Complementary MOS silicon-gate technology.

The memory utilizes asynchronous circuitry and may be maintained in any state for an indefinite period of time.

Key Features

  • Organized as 2048 words by 8-blts.
  • Single +5 Volt Power Supply.
  • Fast Access Time: 200ns Max.
  • TTL Compatible.
  • Low Power: 55/LW Max_ Standby Inputs/Outputs.
  • Completely Static Operation, no clocks required.
  • Low Data Retention Voltage: 2_0V Min_.
  • Extended Temperature Range.
  • MB8418 is compatible with (MB8418-X): -40°C to +85°C TC5518 MB84l8/MB84l8-X BLOCK.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MB84 Single Phase Bridge Rectifier Micro Commercial Components
MB840 Socket 478 Pentium 4 Industrial Motherboard User Manual ETC
MB84256-10LP CMOS 256K SRAM ETC
MB8441-45PFQ CMOS 64K-Bit Dual Port Static RAM ETC
MB84SD23280E-70PBS 64M (X16) FLASH MEMORY 8M (X16) SRAM AMD

Other Datasheets by Fujitsu Semiconductor Limited

Part Number Description
MB8418-X CMOS STATIC RANDOM ACCESS MEMORY
MB8418A-12 CMOS STATIC RANDOM ACCESS MEMORY
MB8418A-15 CMOS STATIC RANDOM ACCESS MEMORY
MB841000 CMOS 1M LOW POWER SRAM
MB8416 CMOS STATIC RANDOM ACCESS MEMORY

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

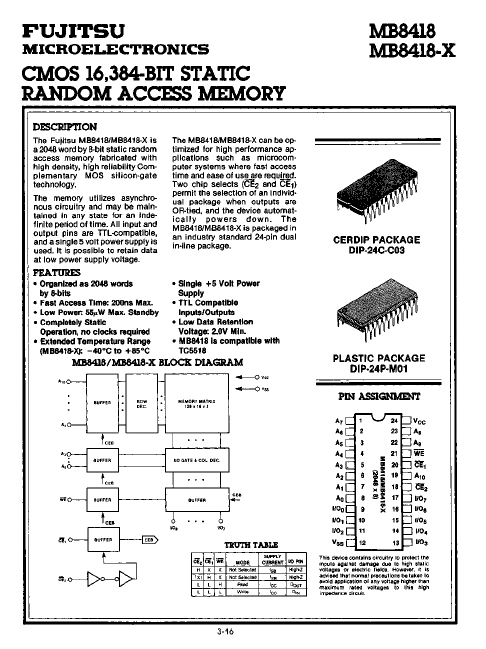

FUJITSU MICROELECTRONICS CMOS 16,384·BIT STATIC RANDOM ACCESS MEMORY MB8418 MB8418·X DESCRIPTION The Fujitsu MB8418/MB8418-X is a 2048 word by 8-bit static random access memory fabricated with high density, high reliability Complementary MOS silicon-gate technology. The memory utilizes asynchronous circuitry and may be maintained in any state for an indefinite period of time. All input and output pins are TIL-compatible, and a single 5 volt power supply is used. It is possible to retain data at low power supply voltage. The MB8418/MB8418-X can be optimized for high performance applications such as microcomputer systems where fast access time and ease of use are required.
