MBM100422 - ECL RAM

Description

The Fujitsu MBM100422 is a fully decoded 1024-bit ECl read/write random access memory designed for high speed scratch pad, control and buffer storage applications.

Features

  • on.
  • chip voltage compensation for improved noise margin. The MBM100422 offers extremely small cell and chip sizes, realized through the use of Fujitsu's patented DOPOS (Doped Polysilicon), as well as lOP (Isolation by Oxide and Polysilicon) processing. As a result, very fast access time with high yields and outstanding device reliability are achieved in volume production. Operation for the MBM100422 is specified over a temperature range of O.
  • C to 85.
  • C (ambient). It also features meta.

📥 Download Datasheet

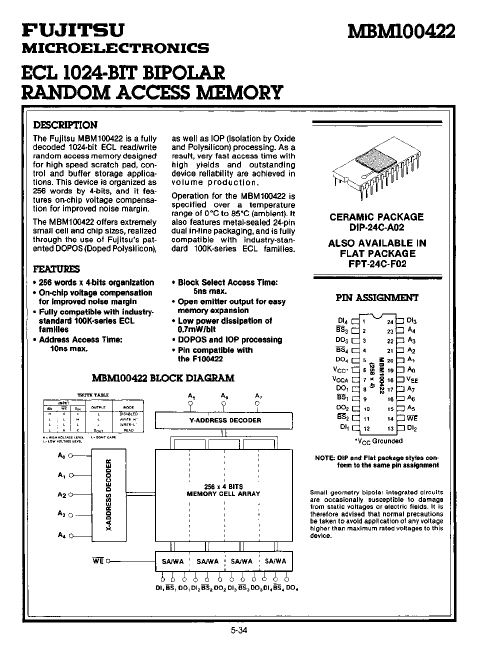

Datasheet preview – MBM100422

📁 Similar Datasheet

Other Datasheets by Fujitsu

Full PDF Text Transcription

Click to expand full text
FUJITSU MICROELECTRONICS ECL l024·BIT BIPOLAR RANDOM ACCESS MEMORY MBMI00422 DESCRIPTION The Fujitsu MBM100422 is a fully decoded 1024-bit ECl read/write random access memory designed for high speed scratch pad, control and buffer storage applications. This device is organized as 256 words by 4-bits, and it features on·chip voltage compensation for improved noise margin. The MBM100422 offers extremely small cell and chip sizes, realized through the use of Fujitsu's patented DOPOS (Doped Polysilicon), as well as lOP (Isolation by Oxide and Polysilicon) processing. As a result, very fast access time with high yields and outstanding device reliability are achieved in volume production. Operation for the MBM100422 is specified over a temperature range of O·C to 85·C (ambient).
