MBM100422A-7 - ECL RAM

📥 Download Datasheet

Overview

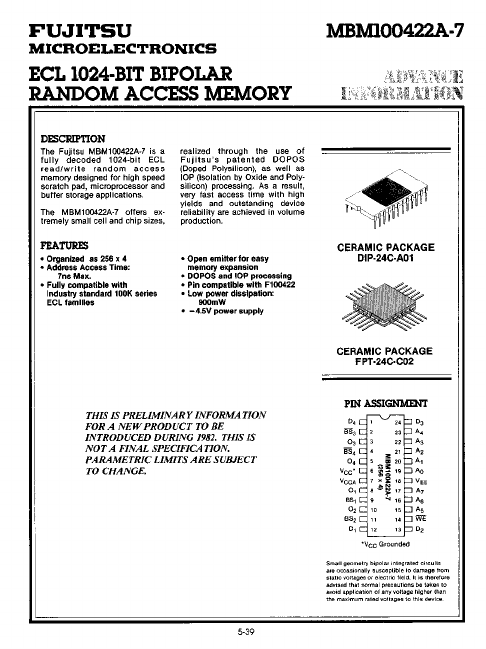

FUJITSU MICROELECTRONICS ECL l024·BIT BIPOLAR RANDOM ACCESS lAEMORY MBMl00422A·7 DESCRIP'110N The Fujitsu MBM100422A·7 is a fully decoded 1024·bit Eel read/write random access memory designed for high speed scratch pad, microprocessor and buffer storage applications.

The MBM100422A·7 offers ex· tremely small cell and chip sizes, realized through the use of Fujitsu's patented DOPOS (Doped Polysilicon), as well as lOP (Isolation by Oxide and Poly· silicon) processing.

As a result, very fast access time with high yields and outstanding device reliability are achieved in volume production.

Key Features

  • Organized as 256 x 4.
  • Address Access Time: 7ns Max.
  • Fully compatible with industry standard 100K series Eel families.
  • Open emitter for easy memory expansion.
  • DOPOS and lOP processing.
  • Pin compatible with F100422.
  • low power dissipation: 900mW.
  • -4.5V power supply.
