MBM10474 - ECL RAM

Product Overview

Fujitsu

📥 Download Datasheet

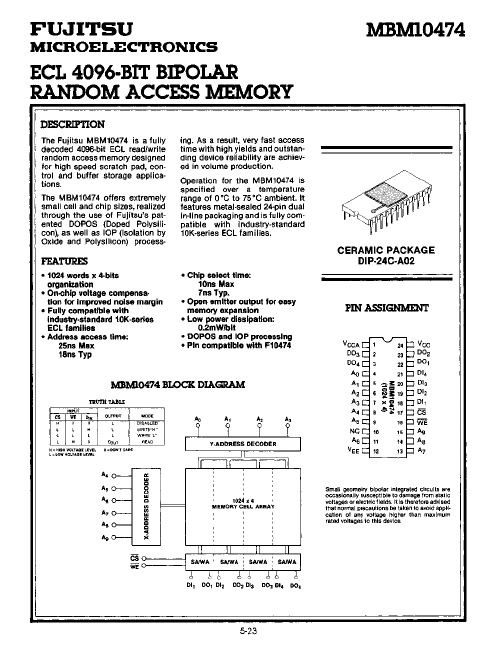

MBM10474 ECL RAM by Fujitsu - Datasheet Preview — Datasheet preview – MBM10474

Datasheet Details

Part number	MBM10474
Manufacturer	Fujitsu
File Size	75.80 KB
Description	ECL RAM
Datasheet	MBM10474 Datasheet

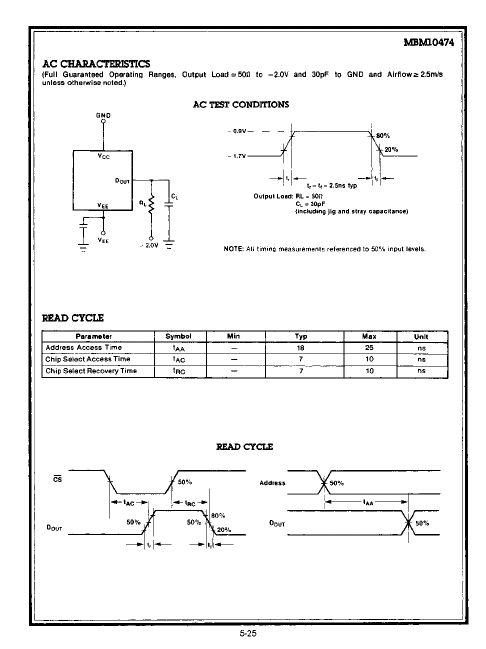

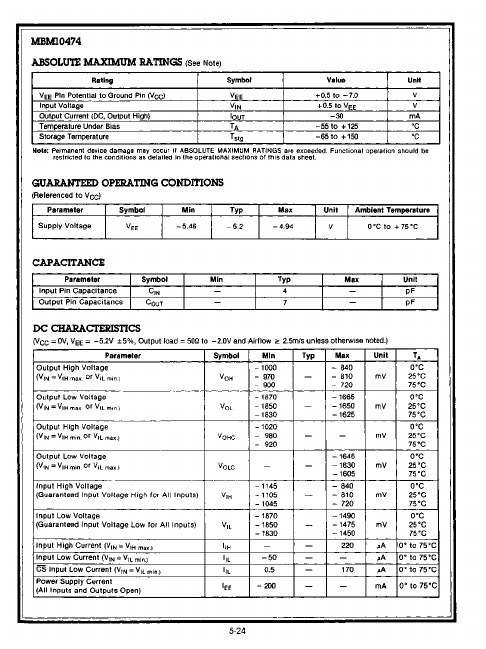

Additional preview pages of the MBM10474 datasheet.

Product details

Description

The Fujitsu MBM10474 is a fully decoded 4096-bit ECl read/write random access memory designed for high speed scratch pad, control and buffer storage applications.

Features

metal-sealed 24-pln dual In-line packaging and is fully compatible with Industry-standard 10K-series ECl families.
