MBM10480 - ECL RAM

Product Overview

Fujitsu

📥 Download Datasheet

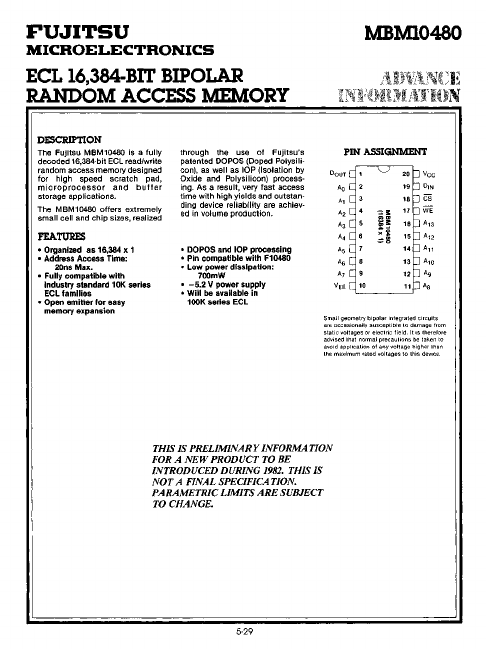

MBM10480 ECL RAM by Fujitsu - Datasheet Preview — Datasheet preview – MBM10480

Datasheet Details

Part number	MBM10480
Manufacturer	Fujitsu
File Size	17.51 KB
Description	ECL RAM
Datasheet	MBM10480 Datasheet
Additional preview pages of the MBM10480 datasheet.

Product details

Description

The Fujitsu MBM10480 is a fully decoded 16,384-bit ECl read/write random access memory designed for high speed scratch pad, microprocessor and buffer storage applications.

Features

Organized as 16,384 x 1.
Address Access Time: 20ns Max_.
Fully compatible with industry standard 10K series ECl families.
Open emitter for easy memory expansion through the use of Fujitsu's patented DOPOS (Doped Polysilicon), as well as lOP (Isolation by Oxide and Polysilicon) processing. As a result, very fast access time with high yields and outstanding device reliability are achieved in volume production.
DOPOS and lOP processing.
Pin c.
