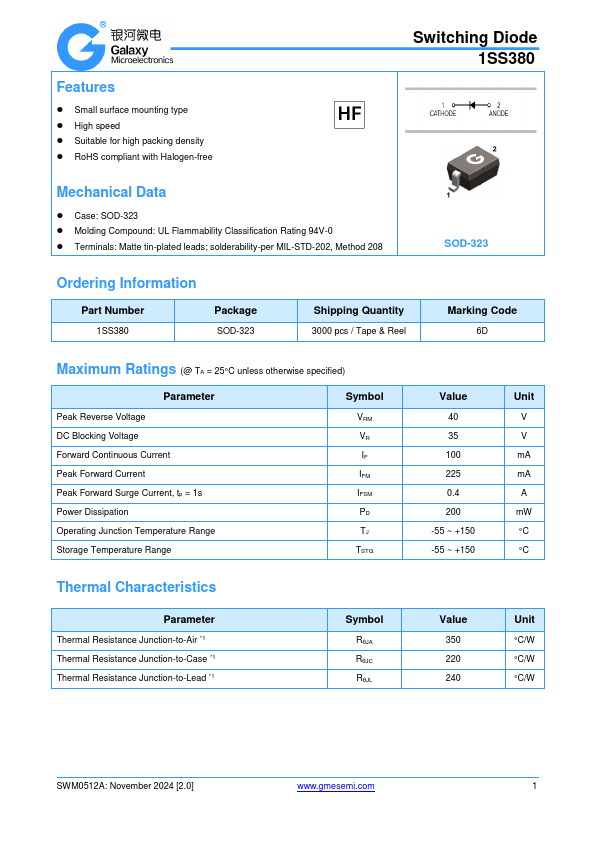

Galaxy Century Microelectronics 1SS380
Switching Diode
| Part No. | 1SS380 |
|---|---|
| Datasheet | 1SS380 Download |
| Manufacturer | Galaxy Century Microelectronics |
| Description | Switching Diode |
| Buy | Stock & Price |
FEATURES
● Small surface mounting type● High speed
● Suitable for high packing density
● RoHS compliant with Halogen-free Switching Diode 1SS380
MECHANICAL DATA
● Case: SOD-323● Molding Compound: UL Flammability Classification Rating 94V-0
● Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 SOD-323 Ordering Information Part Number 1SS380 Package SOD-323 Shipping Quantity 3000 pcs / Tape & Reel Marking Code 6D
MAXIMUM RATINGS
(@ TA = 25°C unless otherwise specified) Parameter Peak Reverse Voltage DC Blocking Voltage Forward Continuous Current Peak Forward Current Peak Forward Surge Current, tp = 1s Power Dissipation Operating Junction Temperature Range Storage Temperature Range Symbol VRM VR IF IFM IFSM PD TJ TSTG Value 40 35 100 225 0.4 200 -55 ~ +150 -55 ~ +150 Unit V V mA mA A mW °C °C Thermal Characteristics Parameter Thermal Resistance Junction-to-Air *1 Thermal Resistance Junction-to-Case *1 Thermal Resistance Junction-to-Lead *1 Symbol RθJA RθJC RθJL...
