1SS380 - Silicon Epitaxial Planar Diodes

LGE

Key Features

Small surface mounting type. High speed. Suitable for high packing density.

1SS380 silicon epitaxial planar diodes by LGE - Datasheet Preview

Datasheet Details

Part number	1SS380
Manufacturer	LGE
File Size	161.13 KB
Description	Silicon Epitaxial Planar Diodes
Datasheet	1SS380 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
1SS380	Switching diode	Rohm
1SS380	Silicon Epitaxial Planar Diode	GME
1SS380	SURFACE MOUNT FAST SWITCHING DIODE	WON-TOP
1SS380	SWITCHING DIODE	Kexin
1SS380TF	Switching Diode	Rohm

Other Datasheets by LGE

Part Number	Description
1SS387	High Speed Switching Diodes
1SS388	High Speed Switching Diode
1SS389	Schottky Barrier Diode
1SS344	Surface Mount Schottky Planar Diode
1SS355	0.2W Fast Switching Diodes

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

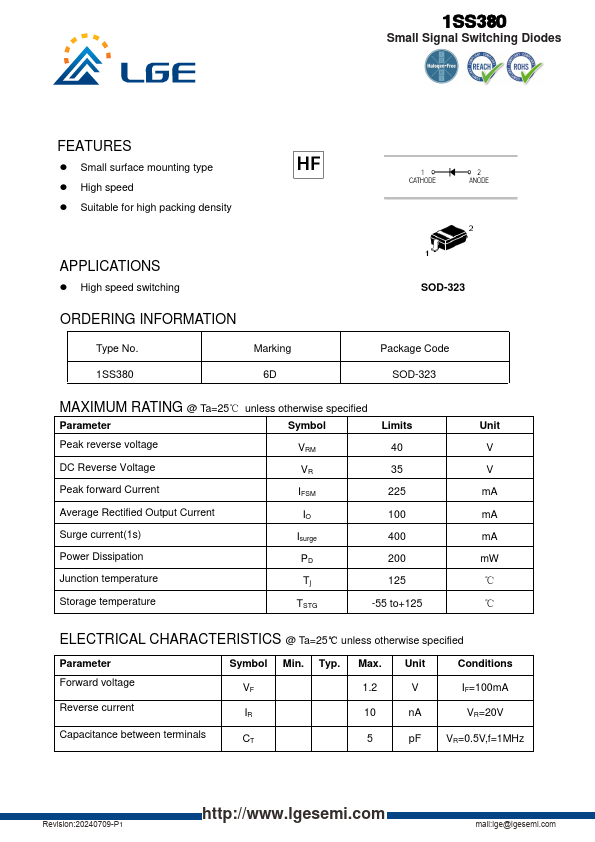

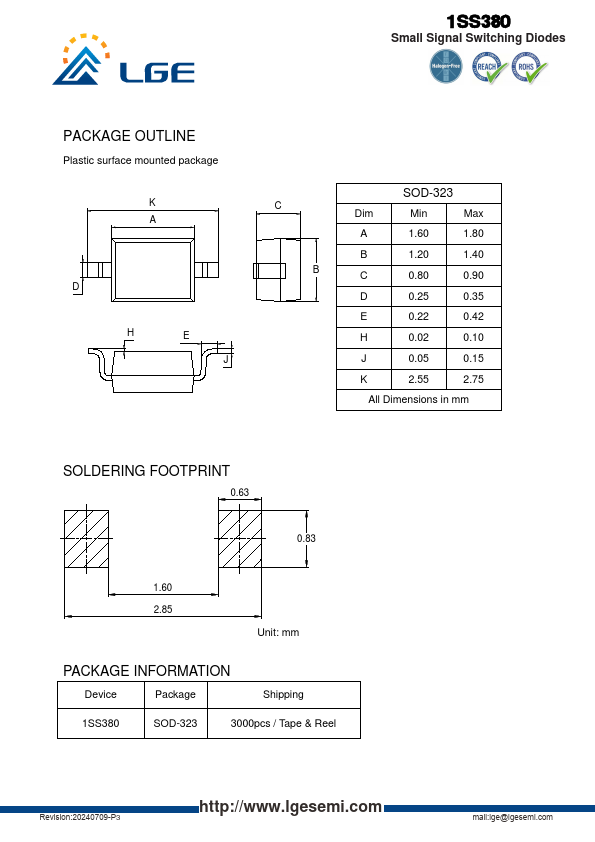

1SS380 Silicon Epitaxial Planar Diodes SOD-323 Features Small surface mounting type. High speed. Suitable for high packing density. Applications High speed switching. Dimensions in inches and (millimeters) Ordering Information Type No. 1SS380 Marking 6D Package Code SOD-323 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Parameter Symbol Limits Peak reverse voltage VRM 40 DC Reverse Voltage VR 35 Peak forward Current IFSM 225 Average Rectified Output Current IO 100 Power Dissipation PD 200 Junction temperature Tj 125 Storage temperature TSTG -55~+125 Unit V V mA mA mW ℃ ℃ ELECTRICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified Parameter Forward voltage Reverse current Capacitance between terminals Symbol Min. Typ. Max. VF 1.
