1SS400G Datasheet PDF

FEATURES

● High speed and high reliability High Speed Switching Diode 1SS400G

MECHANICAL DATA

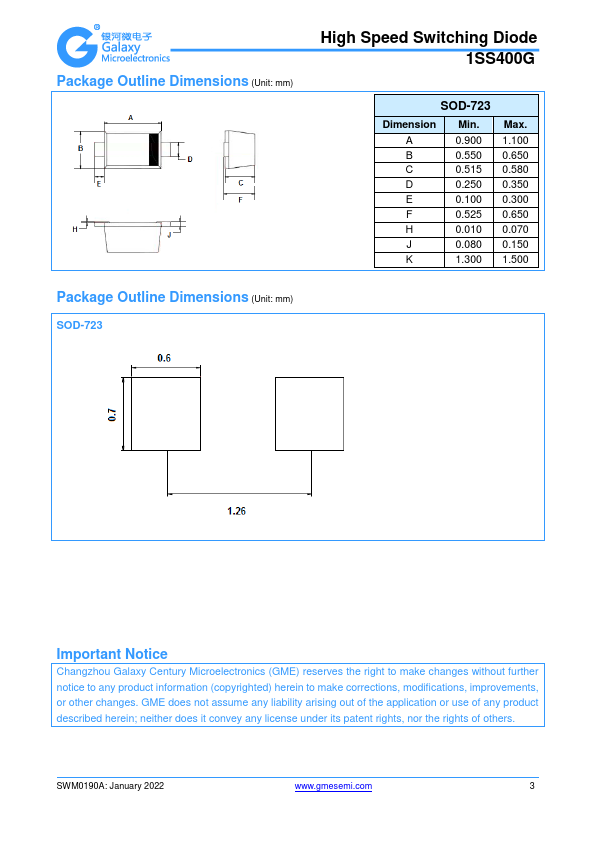

● Case: SOD-723
● Molding Compound: UL Flammability Classification Rating 94V-0
● Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 SOD-723 Ordering Information Part Number 1SS400G Package SOD-723 Shipping Quantity 10000 pcs / Tape & Reel Marking Code A

MAXIMUM RATINGS

(@ TA = 25°C unless otherwise specified) Parameter Non-Repetitive Peak Reverse Voltage DC Blocking Voltage Average Rectified Output Current Forward Current Peak Forward Surge Current, 1s Single Half-sine-wave Symbol VRM VR Io IFM IFSM Value 90 80 100 225 0.5 Unit V V mA mA A Thermal Characteristics Parameter Power Dissipation Operating Junction Temperature Range Storage Temperature Range Symbol PD TJ TSTG Value 100 -55 ~ +150 -55 ~ +150 Unit mW °C °C SWM0190A: January 2022 1 High Speed Switching Diode 1SS400G

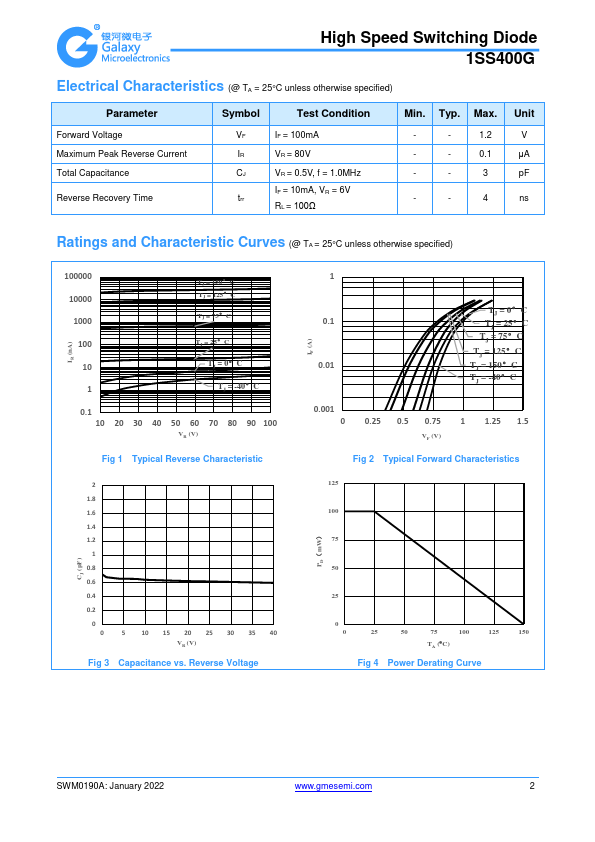

ELECTRICAL CHARACTERISTICS

(@ TA = 25°C unless otherwise specified) Parameter Forward Voltage...
