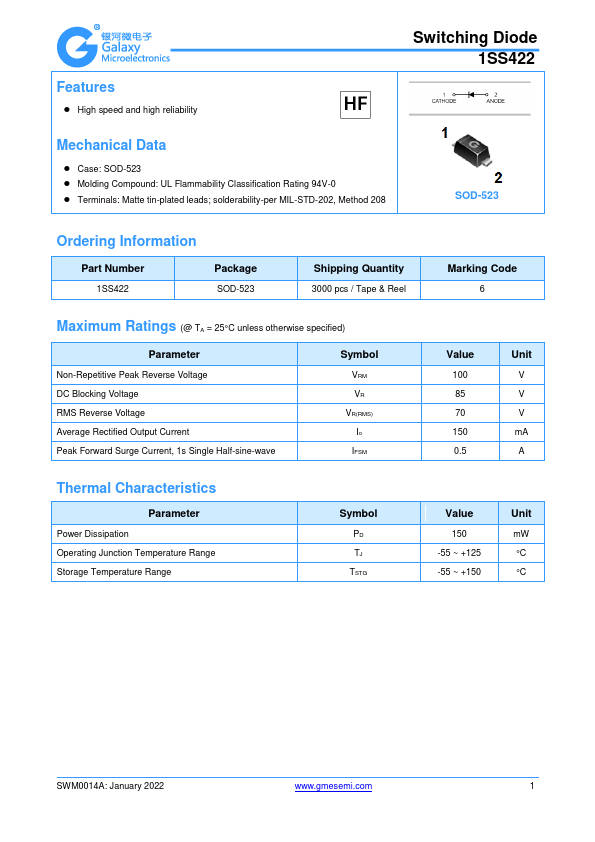

FEATURES

● High speed and high reliability Switching Diode 1SS422

MECHANICAL DATA

● Case: SOD-523
● Molding Compound: UL Flammability Classification Rating 94V-0
● Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 SOD-523 Ordering Information Part Number 1SS422 Package SOD-523 Shipping Quantity 3000 pcs / Tape & Reel

MAXIMUM RATINGS

(@ TA = 25°C unless otherwise specified) Parameter Non-Repetitive Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Average Rectified Output Current Peak Forward Surge Current, 1s Single Half-sine-wave Symbol VRM VR VR(RMS) Io IFSM Thermal Characteristics Parameter Power Dissipation Operating Junction Temperature Range Storage Temperature Range Symbol PD TJ TSTG Marking Code 6 Value 100 85 70 150 0.5 Unit V V V mA A Value 150 -55 ~ +125 -55 ~ +150 Unit mW °C °C SWM0014A: January 2022 1 Switching Diode 1SS422

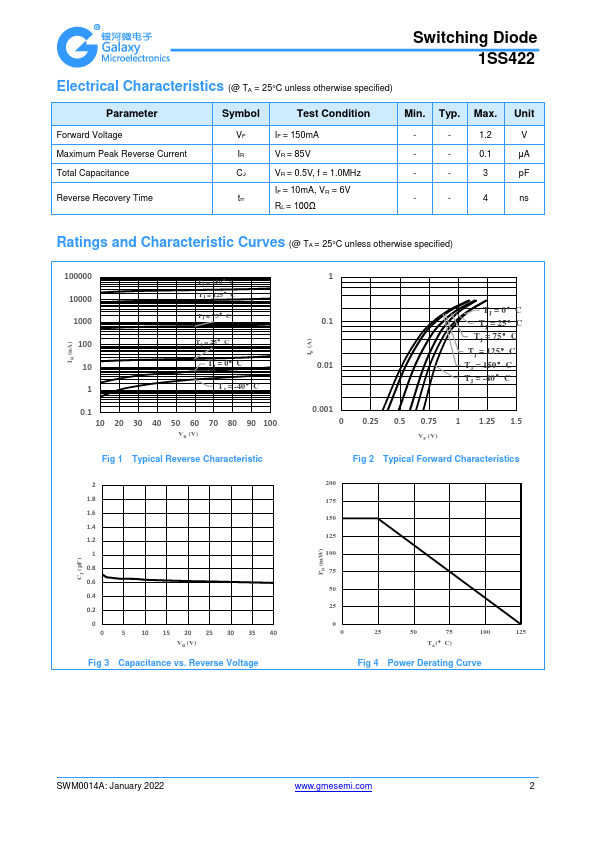

ELECTRICAL CHARACTERISTICS

(@ TA = 25°C unless otherwise specified) Parameter Forward Voltage Maximum Peak Revers...
