2N7002H - N-Channel Enhancement Mode MOSFET

Key Features

  • Low on-resistance.
  • High-speed switching.
  • Drive circuits can be simple.
  • Parallel use is easy.
  • HBM: JESD22-A114-B: 2.
  • RoHS compliant with Halogen-free 2N7002H SOT-23 2N7002HW SOT-323 Typical.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2N7002H 60V N-Channel MOSFET nexperia
2N7002H N-Channel MOSFET Diodes
2N7002HS dual N-channel Trench MOSFET nexperia
2N7002 N-Channel 60V MOSFET Vishay
2N7002 N-channel FET Fairchild Semiconductor

Other Datasheets by Galaxy Microelectronics

Part Number Description
2N7002 N-Channel Power Mosfet
2N7002T Small Signal MOSFET Transistor
2N7002W N-Channel Power Mosfet
2N7002W N-channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

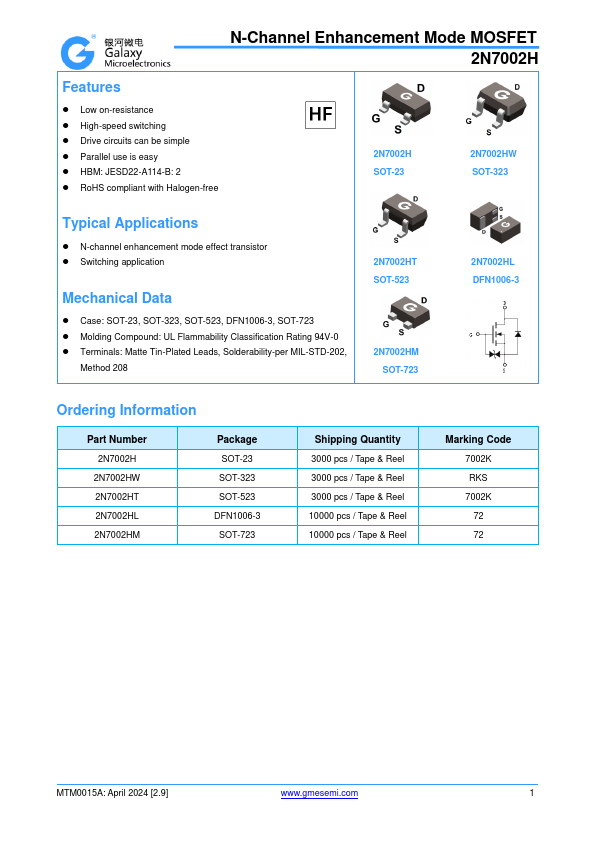

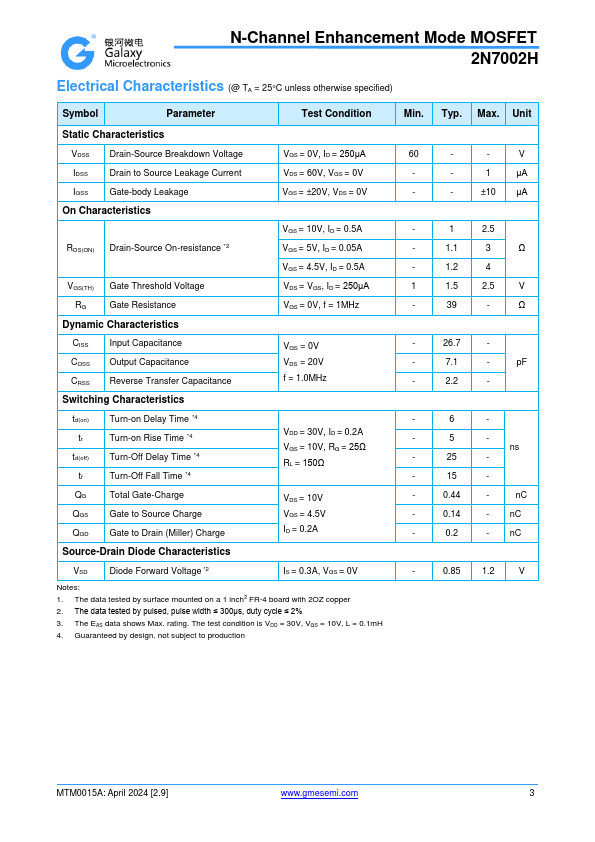

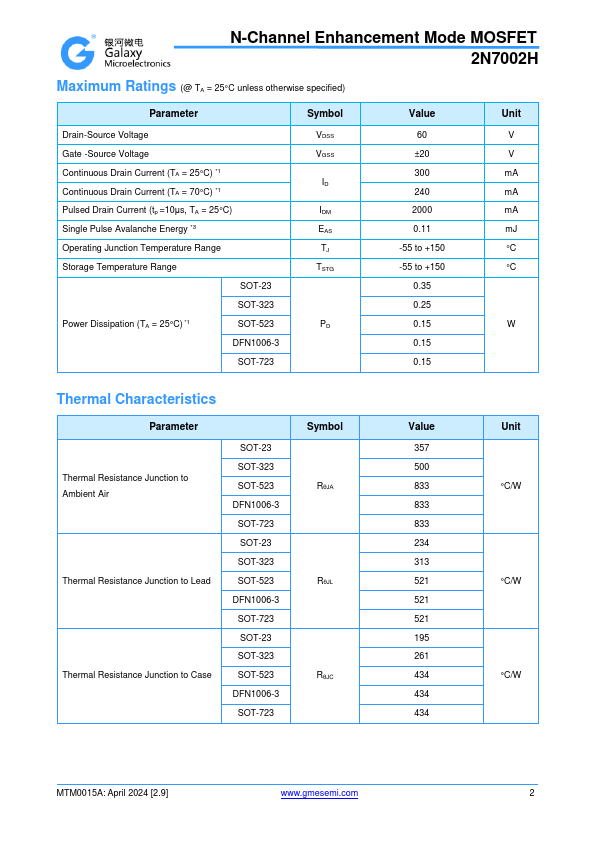

N-Channel Enhancement Mode MOSFET 2N7002H Features  Low on-resistance  High-speed switching  Drive circuits can be simple  Parallel use is easy  HBM: JESD22-A114-B: 2  RoHS compliant with Halogen-free 2N7002H SOT-23 2N7002HW SOT-323 Typical Applications  N-channel enhancement mode effect transistor  Switching application Mechanical Data  Case: SOT-23, SOT-323, SOT-523, DFN1006-3, SOT-723  Molding Compound: UL Flammability Classification Rating 94V-0  Terminals: Matte Tin-Plated Leads, Solderability-per MIL-STD-202, Method 208 2N7002HT SOT-523 2N7002HM SOT-723 2N7002HL DFN1006-3 Ordering Information Part Number 2N7002H 2N7002HW 2N7002HT 2N7002HL 2N7002HM Package SOT-23 SOT-323 SOT-523 DFN1006-3 SOT-723 Shipping Quantity 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel 3000
