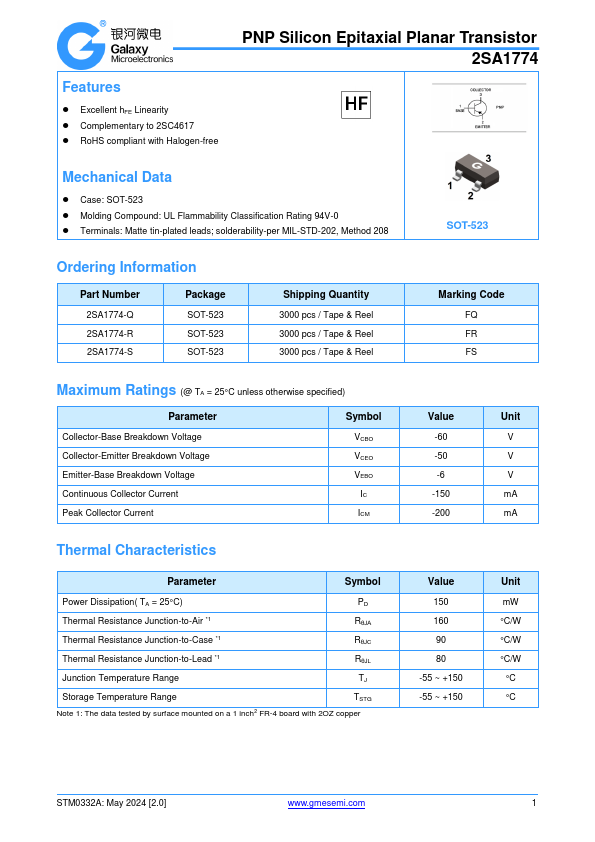

Galaxy Century Microelectronics 2SA1774
PNP Silicon Epitaxial Planar Transistor
| Part No. | 2SA1774 |
|---|---|
| Datasheet | 2SA1774 Download |
| Manufacturer | Galaxy Century Microelectronics |
| Description | PNP Silicon Epitaxial Planar Transistor |
| Buy | Stock & Price |
FEATURES
● Excellent hFE Linearity● Complementary to 2SC4617
● RoHS compliant with Halogen-free PNP Silicon Epitaxial Planar Transistor 2SA1774
MECHANICAL DATA
● Case: SOT-523● Molding Compound: UL Flammability Classification Rating 94V-0
● Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 SOT-523 Ordering Information Part Number 2SA1774-Q 2SA1774-R 2SA1774-S Package SOT-523 SOT-523 SOT-523 Shipping Quantity 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel Marking Code FQ FR FS
MAXIMUM RATINGS
(@ TA = 25°C unless otherwise specified) Parameter Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage Emitter-Base Breakdown Voltage Continuous Collector Current Peak Collector Current Symbol VCBO VCEO VEBO IC ICM Value -60 -50 -6 -150 -200 Unit V V V mA mA Thermal Characteristics Parameter Symbol Power Dissipation( TA = 25°C) PD Thermal Resistance Junction-to-Air *1 RθJA Thermal Resistance Junction-to-Case *1 RθJC Thermal Resista...
