2SB1241D
2SB1241D is Power Transistor manufactured by Galaxy Microelectronics.
- Part of the 2SB1241I comparator family.
- Part of the 2SB1241I comparator family.

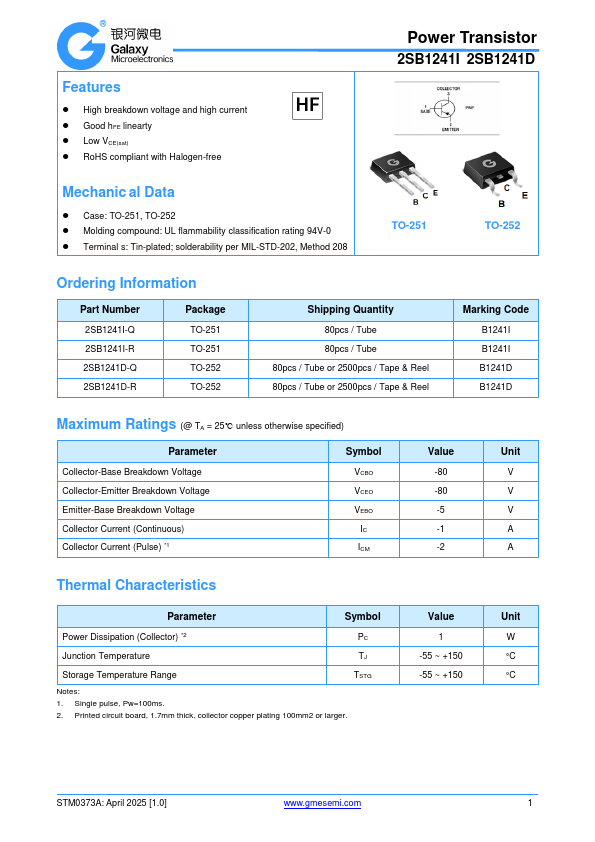

Features
- High breakdown voltage and high current
- Good h FE linearty
- Low VCE(sat)
- Ro HS pliant with Halogen-free
Power Transistor
2SB1241I 2SB1241D
Mechanic al Data
- Case: TO-251, TO-252
- Molding pound: UL flammability classification rating 94V-0
- Terminal s: Tin-plated; solderability per MIL-STD-202, Method 208
TO-251
TO-252
Ordering Information
Part Number 2SB1241I-Q 2SB1241I-R 2SB1241D-Q 2SB1241D-R
Package TO-251 TO-251 TO-252 TO-252
Shipping Quantity 80pcs / Tube 80pcs / Tube
80pcs / Tube or 2500pcs / Tape & Reel 80pcs / Tube or 2500pcs / Tape & Reel
Marking Code B1241I B1241I B1241D B1241D
Maximum Ratings (@ TA = 25℃ unless otherwise specified)
Parameter Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage Emitter-Base Breakdown Voltage Collector Current (Continuous) Collector Current (Pulse)
- 1
Symbol VCBO VCEO VEBO IC ICM
Value -80 -80 -5 -1 -2
Unit V V V A A
Thermal Characteristics
Parameter
Symbol
Power Dissipation (Collector)
- 2
Junction Temperature
Storage Temperature Range
TSTG
Notes: 1. Single pulse, Pw=100ms. 2. Printed circuit board, 1.7mm thick, collector copper plating 100mm2 or larger.
Value 1
-55 ~ +150 -55 ~ +150
Unit W °C °C

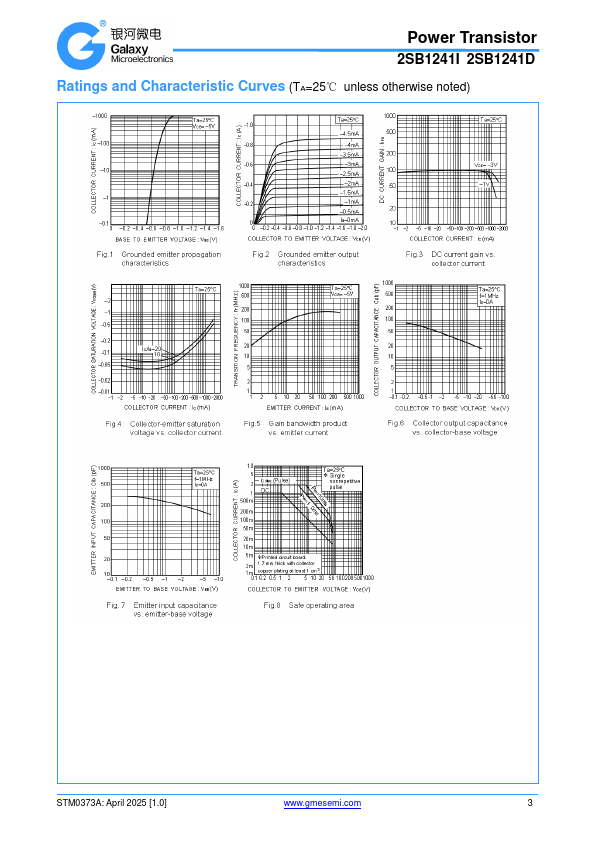

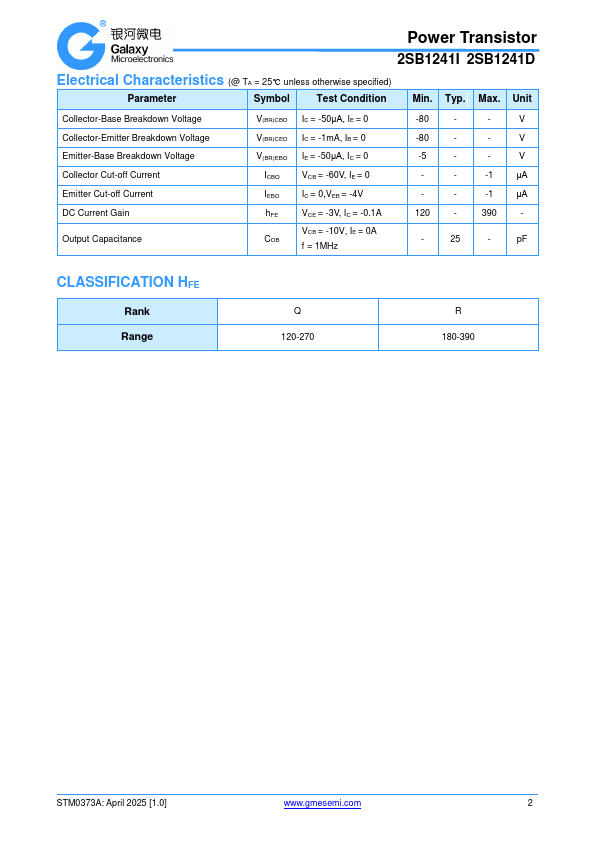

STM0373A: April 2025...
