2SB1241I - Power Transistor

Key Features

  • High breakdown voltage and high current.
  • Good hFE linearty.
  • Low VCE(sat).
  • RoHS compliant with Halogen-free Power Transistor 2SB1241I 2SB1241D Mechanic al Data.
  • Case: TO-251, TO-252.
  • Molding compound: UL flammability classification rating 94V-0.
  • Terminal s: Tin-plated; solderability per MIL-STD-202, Method 208 TO-251 TO-252 Ordering Information Part Number 2SB1241I-Q 2SB1241I-R 2SB1241D-Q 2SB1241D-R Package TO-251 TO-251 TO-252 TO-252 Shipping Quantity.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SB1241 Power Transistor Rohm
2SB1240 Medium power Transistor Rohm
2SB1240 Silicon PNP transistor BLUE ROCKET ELECTRONICS
2SB1243 Power Transistor Rohm
2SB1243 Silicon PNP transistor BLUE ROCKET ELECTRONICS

Other Datasheets by Galaxy Microelectronics

Part Number Description
2SB1241D Power Transistor
2SB1240 Medium Power Transistor
2SB1243 Power Transistor
2SB1202 PNP Epitaxial Planar Silicon Transistors
2SB1216 PNP Epitaxial Planar Silicon Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

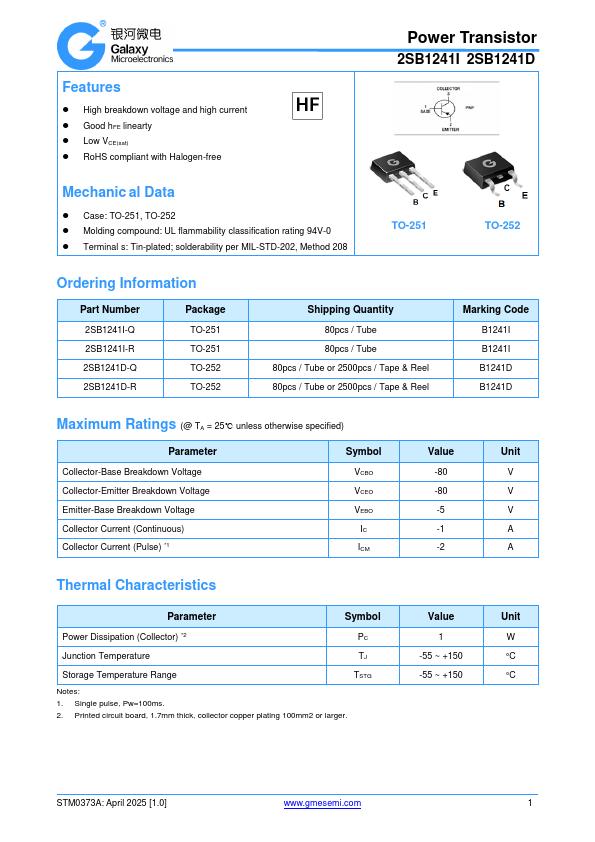

Features  High breakdown voltage and high current  Good hFE linearty  Low VCE(sat)  RoHS compliant with Halogen-free Power Transistor 2SB1241I 2SB1241D Mechanic al Data  Case: TO-251, TO-252  Molding compound: UL flammability classification rating 94V-0  Terminal s: Tin-plated; solderability per MIL-STD-202, Method 208 TO-251 TO-252 Ordering Information Part Number 2SB1241I-Q 2SB1241I-R 2SB1241D-Q 2SB1241D-R Package TO-251 TO-251 TO-252 TO-252 Shipping Quantity 80pcs / Tube 80pcs / Tube 80pcs / Tube or 2500pcs / Tape & Reel 80pcs / Tube or 2500pcs / Tape & Reel Marking Code B1241I B1241I B1241D B1241D Maximum Ratings (@ TA = 25℃ unless otherwise specified) Parameter Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage Emitter-Base Breakdown Voltage Collect
