2SC1654 - Silicon Epitaxial Planar Transistor

Galaxy Microelectronics

Key Features

High DC current gain:hFE=130(Typ) (VCE=3V,IC=15mA).
High voltage. Pb Lead-free 2SC1654.

2SC1654 silicon epitaxial planar transistor by Galaxy Microelectronics - Datasheet Preview

Datasheet Details

Part number	2SC1654
Manufacturer	Galaxy Microelectronics
File Size	308.13 KB
Description	Silicon Epitaxial Planar Transistor
Datasheet	2SC1654 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
2SC1654	NPN Transistor	NEC
2SC1654	NPN Transistor	Kexin
2SC1654	NPN Transistor	SeCoS
2SC1654	TRANSISTOR	Jin Yu Semiconductor
2SC1651	Triple Diffusied NPN Silicon Transistor	Rohm

Other Datasheets by Galaxy Microelectronics

Part Number	Description
2SC1623	Silicon Transistor
2SC1623W	NPN Transistor
2SC1766	NPN Transistor
2SC1815	Silicon Epitaxial Planar Transistor
2SC2073	NPN Triple Didduesd Planar Silicon Transistor

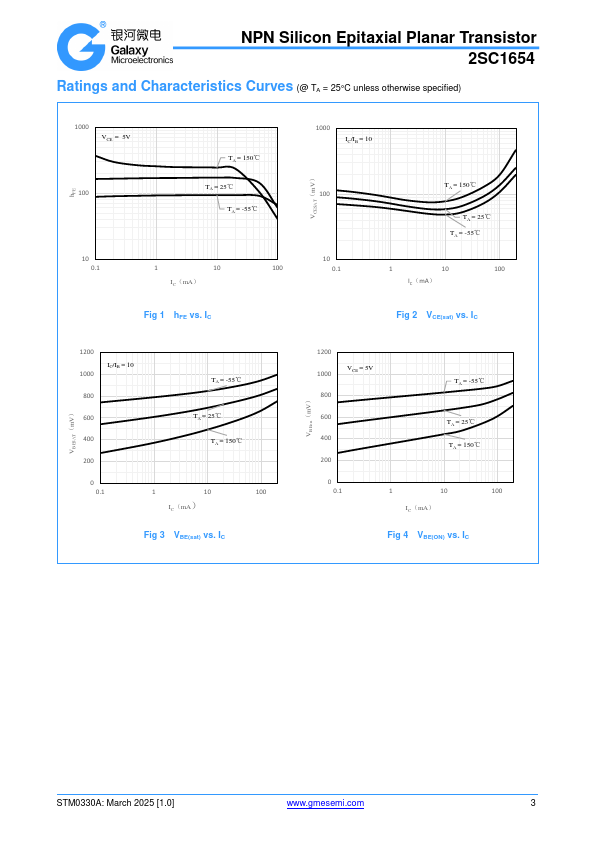

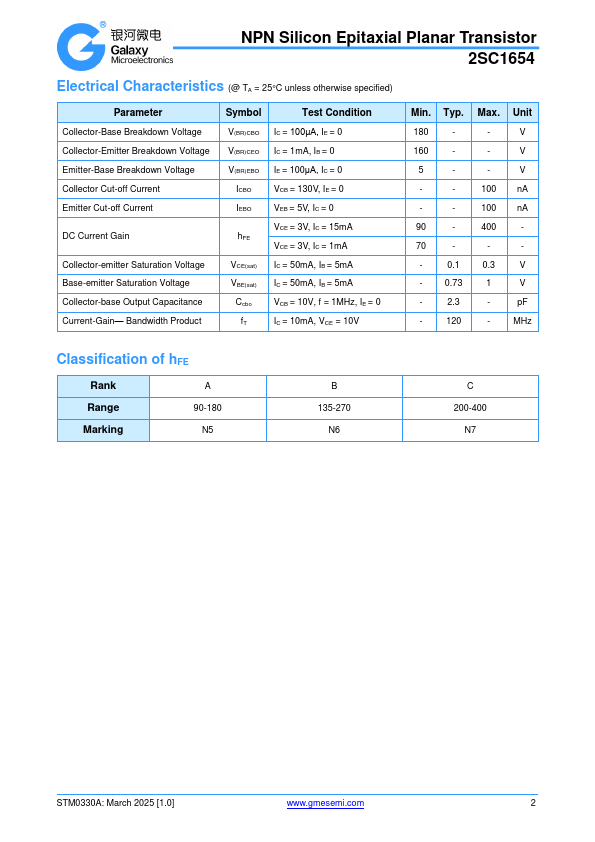

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

Production specification Silicon Epitaxial Planar Transistor FEATURES  High DC current gain:hFE=130(Typ) (VCE=3V,IC=15mA).  High voltage. Pb Lead-free 2SC1654 APPLICATIONS  Audio frequency general purpose amplifier applications. ORDERING INFORMATION Type No. Marking 2SC1654 N5/N6/N7 SOT-23 Package Code SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO Collector-Base Voltage 180 VCEO Collector-Emitter Voltage 160 VEBO Emitter-Base Voltage 5 IC Collector Current -Continuous 50 Pt Total Power Dissipation 150 Tj,Tstg Junction and Storage Temperature -55 to +125 Units V V V mA mW ℃ C096 Rev.A www.gmesemi.
