Full PDF Text Transcription for 2SD1624 (Reference)
Note: Below is a high-fidelity text extraction (approx. 800 characters) for
2SD1624. For precise diagrams, and layout, please refer to the original PDF.

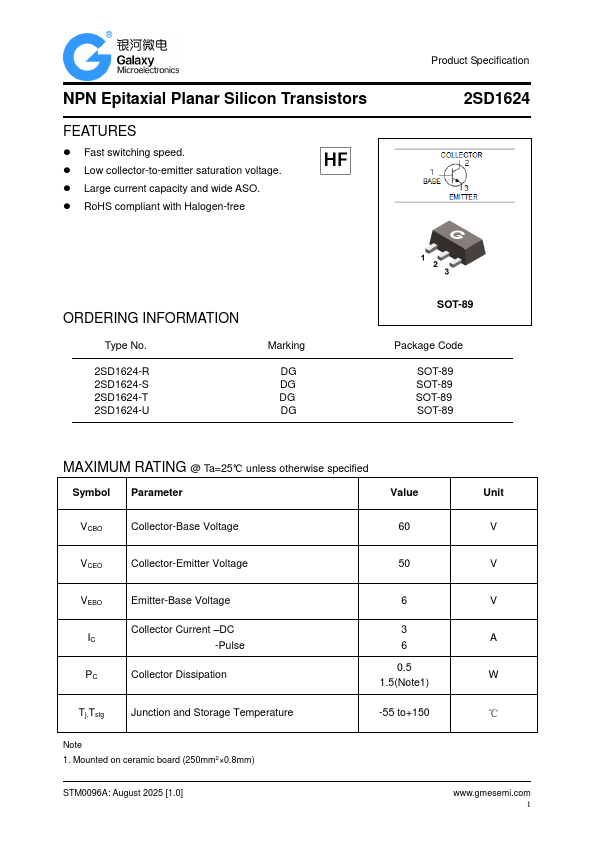

NPN Epitaxial Planar Silicon Transistors FEATURES Fast switching speed. Low collector-to-emitter saturation voltage. Large current capacity and wide ASO. RoHS com...
View more extracted text
saturation voltage. Large current capacity and wide ASO. RoHS compliant with Halogen-free Product Specification 2SD1624 ORDERING INFORMATION Type No. 2SD1624-R 2SD1624-S 2SD1624-T 2SD1624-U Marking DG DG DG DG SOT-89 Package Code SOT-89 SOT-89 SOT-89 SOT-89 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value Unit VCBO Collector-Base Voltage 60 V VCEO Collector-Emitter Voltage 50 V VEBO IC PC Emitter-Base Voltage Collector Current –DC -Pulse Collector Dissipation Tj,Tstg Junction and Storage Temperature Note 1. Mounted on ceramic board (250mm2×0.8mm) 6 V 3 A 6 0.5 W 1.5(Note1) -55 to+150 ℃ STM0096

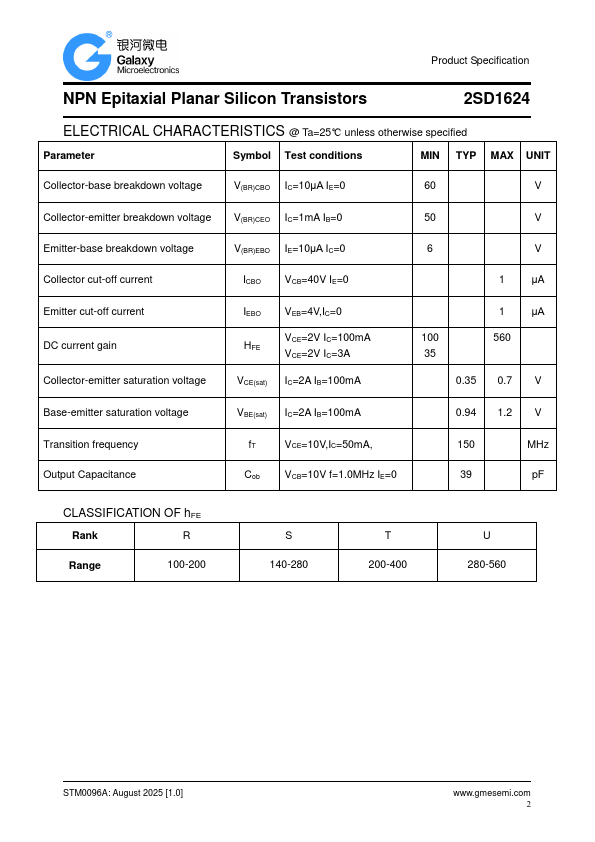

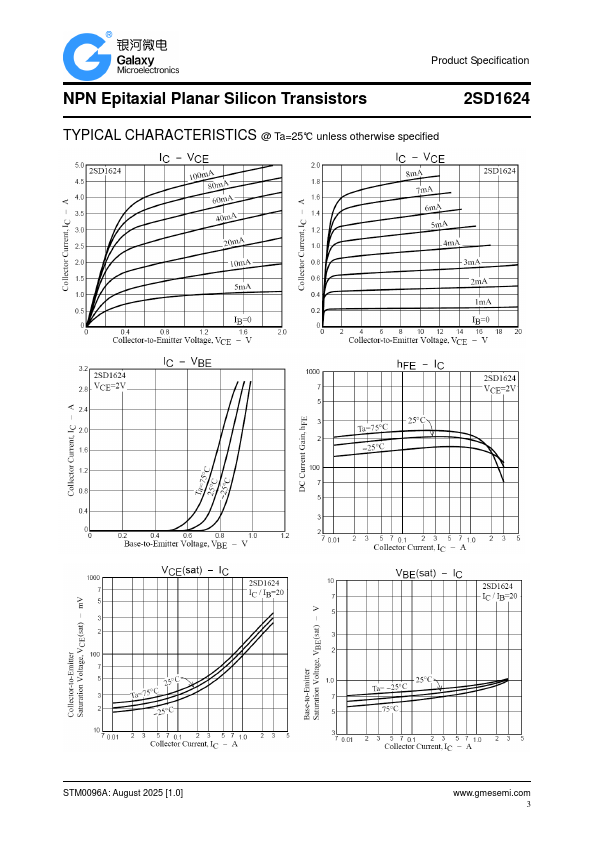

2SD1624 Datasheet
