2SD2114 - Silicon Epitaxial Planar Transistor

Galaxy Microelectronics

Key Features

High DC current gain.
High emitter-base voltage.
Low VCE(sat).
RoHS compliant with Halogen-free 2SD2114.

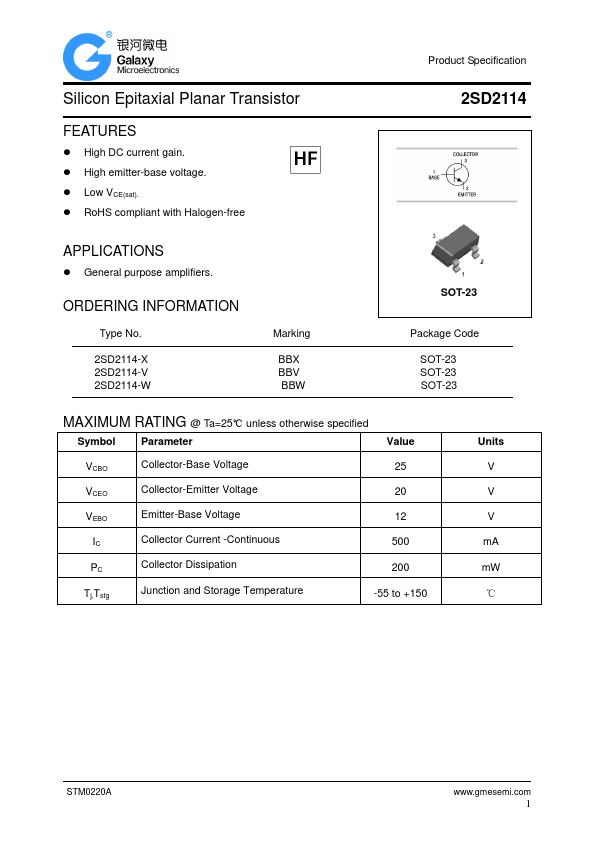

2SD2114 silicon epitaxial planar transistor by Galaxy Microelectronics - Datasheet Preview

Datasheet Details

Part number	2SD2114
Manufacturer	Galaxy Microelectronics
File Size	289.34 KB
Description	Silicon Epitaxial Planar Transistor
Datasheet	2SD2114 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
2SD2114	NPN Transistor	JCST
2SD2114	NPN Transistor	SeCoS
2SD2114K	High-current Gain Medium Power Transistor	Rohm
2SD2114K	Power Transistor	Kexin
2SD211	SILICON POWER TRANSISTOR	SavantIC

Other Datasheets by Galaxy Microelectronics

Part Number	Description
2SD2118	Low Power Transistor
2SD2137A	Power Transistors
2SD2142	Silicon NPN Transistor
2SD2150	Low Frequency Transistor
2SD2061	Power Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

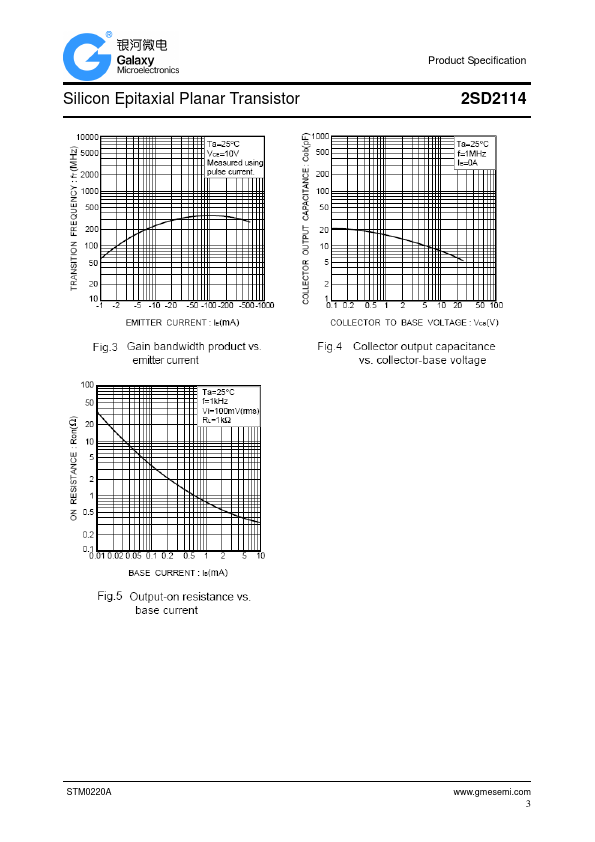

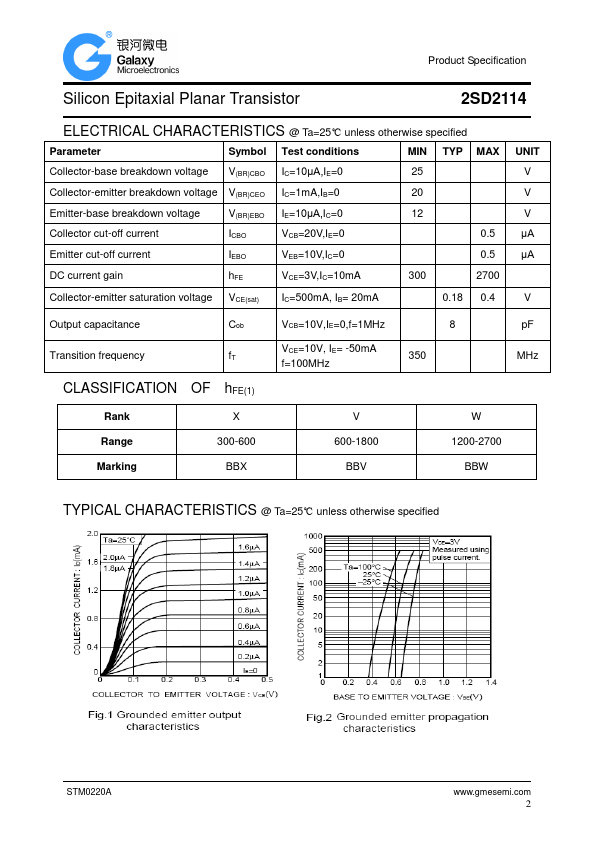

Product Specification Silicon Epitaxial Planar Transistor FEATURES  High DC current gain.  High emitter-base voltage.  Low VCE(sat).  RoHS compliant with Halogen-free 2SD2114 APPLICATIONS  General purpose amplifiers. ORDERING INFORMATION Type No. 2SD2114-X 2SD2114-V 2SD2114-W Marking BBX BBV BBW SOT-23 Package Code SOT-23 SOT-23 SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO Collector-Base Voltage 25 VCEO Collector-Emitter Voltage 20 VEBO Emitter-Base Voltage 12 IC Collector Current -Continuous 500 PC Collector Dissipation 200 Tj,Tstg Junction and Storage Temperature -55 to +150 Units V V V mA mW ℃ STM0220A www.gmesemi.
