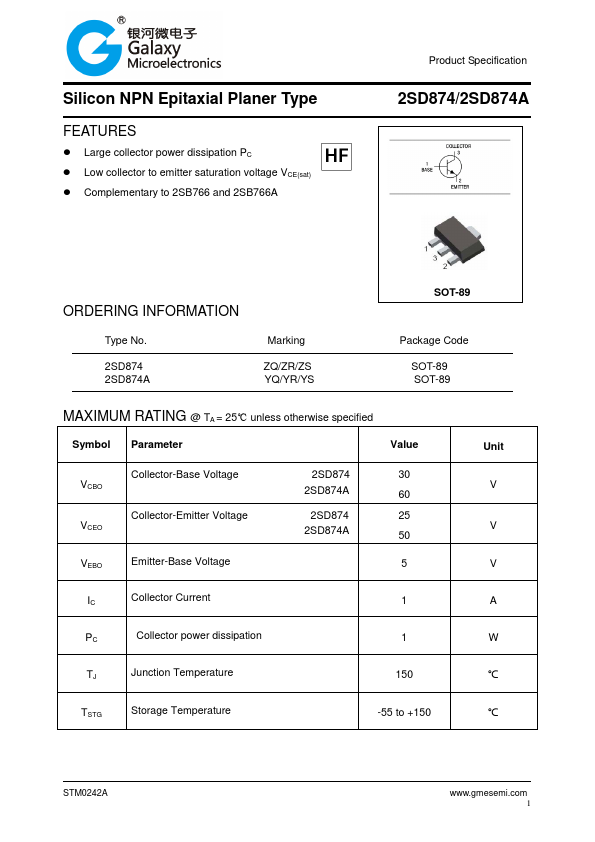

2SD874
2SD874 is Silicon NPN Epitaxial Planer Type Transistors manufactured by Galaxy Microelectronics.
Silicon NPN Epitaxial Planer Type
Features
- Large collector power dissipation PC
- Low collector to emitter saturation voltage VCE(sat)
- plementary to 2SB766 and 2SB766A
Product Specification
2SD874/2SD874A
ORDERING INFORMATION
Type No.
2SD874 2SD874A
Marking
ZQ/ZR/ZS YQ/YR/YS
SOT-89
Package Code SOT-89 SOT-89
MAXIMUM RATING @ TA = 25℃ unless otherwise specified
Symbol Parameter
Value
Unit
Collector-Base Voltage
VCBO
2SD874A
Collector-Emitter Voltage
VCEO
2SD874A
VEBO
Emitter-Base Voltage
Collector Current
Collector power dissipation
Junction...
