BAP64-05

Manufacturer: Galaxy Microelectronics

This datasheet includes multiple variants, all published together in a single manufacturer document.

BAP64-05 datasheet preview

Datasheet Details

Part number	BAP64-05
Datasheet	BAP64-05 BAP64-04 Datasheet (PDF)
File Size	276.14 KB
Manufacturer	Galaxy Microelectronics
Description	General Purpose PIN Diode

BAP64-05 Overview

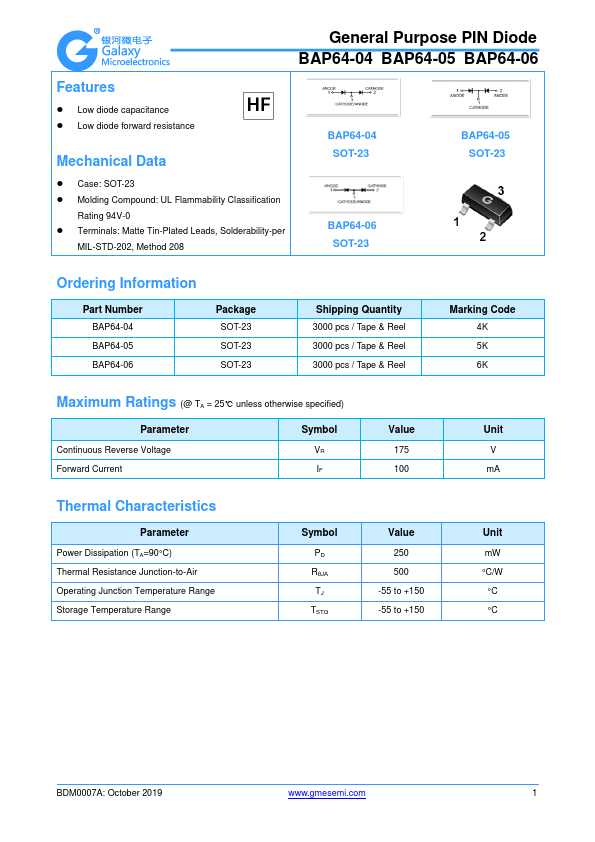

General Purpose PIN Diode BAP64-04 BAP64-05 BAP64-06.

BAP64-05 Key Features

Low diode capacitance
Low diode forward resistance

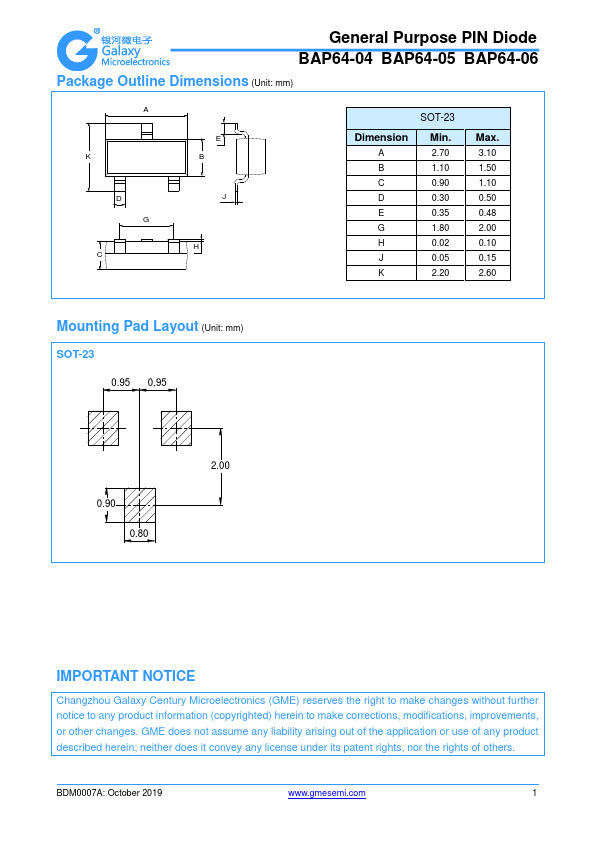

Case: SOT-23
Molding pound: UL Flammability Classification
55 to +150 -55 to +150
Typ. Max. Unit
