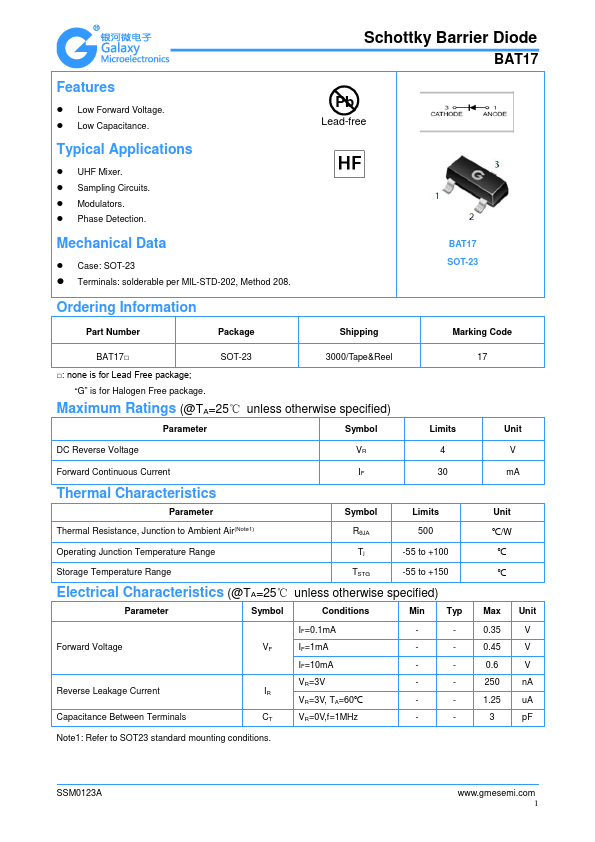

Galaxy Century Microelectronics BAT17
Schottky Barrier Diode
| Part No. | BAT17 |
|---|---|
| Datasheet | BAT17 Download |
| Manufacturer | Galaxy Century Microelectronics |
| Description | Schottky Barrier Diode |
| Buy | Stock & Price |
FEATURES
● Low Forward Voltage.● Low Capacitance. Typical
APPLICATIONS
● UHF Mixer.● Sampling Circuits.
● Modulators.
● Phase Detection.
MECHANICAL DATA
● Case: SOT-23● Terminals: solderable per MIL-STD-202, Method 208. Ordering Information Part Number Package Pb Lead-free Shipping BAT17 SOT-23 Marking Code BAT17□ SOT-23 3000/Tape&Reel □: none is for Lead Free package; “G” is for Halogen Free package.

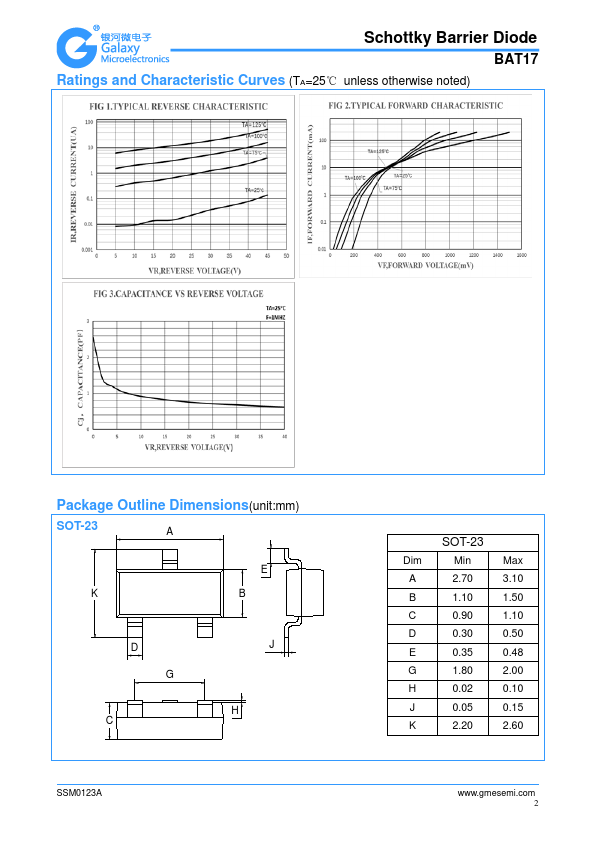

MAXIMUM RATINGS
(@TA=25℃ unless otherwise specified) Parameter Symbol 17 Limits Unit DC Reverse Voltage VR 4 V Forward Continuous Current Thermal Characteristics Parameter Thermal Resistance, Junction to Ambient Air(Note1) Operating Junction Temperature Range IF 30 Symbol RθJA Tj Limits 500 -55 to +100 mA Unit ℃/W ℃ Storage Temperature Range TSTG -55 to +150ELECTRICAL CHARACTERISTICS
(@TA=25℃ unless otherwise specified) Parameter Symbol Conditions Min Typ Forward Voltage Reverse Leakage Current Capacitance Between Terminals IF=0.1mA VF IF=1mA IF=10mA VR=3V IR VR=3V, TA=60℃ CT VR=0V,f=1MHz - - - - - - - - - - - - ℃ Max Unit 0.35 V 0.45 V 0.6 V 250 nA 1.25 uA 3 pF Note1: Refer to SOT23 standard mounting conditions.
