BAT46W
Features
- For general purpose applications
- This diodes features very low turn-on voltage and fast switching
Mechanical Data
- Case: SOT-323
- Molding pound: UL Flammability Classification Rating 94V-0
- Terminals: Matte tin-plated leads; solderability-per MIL-STD-202,
Method 208
Ordering Information
Part Number
Package
SOT-323
Shipping Quantity
3000pcs / Tape & Reel
SOT-323
Marking Code
L6
Maximum Ratings (@ TA = 25℃ unless otherwise specified)
Parameter
Peak Repetitive Reverse Voltage Repetitive Peak Forward Current Continuous Forward Current Peak Forward Surge Current (8.3ms single half sine-wave)
Symbol
VRRM IFRM
IF IFSM
Thermal Characteristics
Value
100 350 150 0.75
Unit
V m A m A A
Parameter Power Dissipation
Thermal Resistance Junction-to-Air Operating Junction Temperature Range Storage Temperature Range
Symbol
PD RθJA TJ TSTG
Value
200 500 -55 ~ +125 -55 ~ +150
Unit m W °C/W
°C °C
SSM0153A: July 2020
.gmesemi.

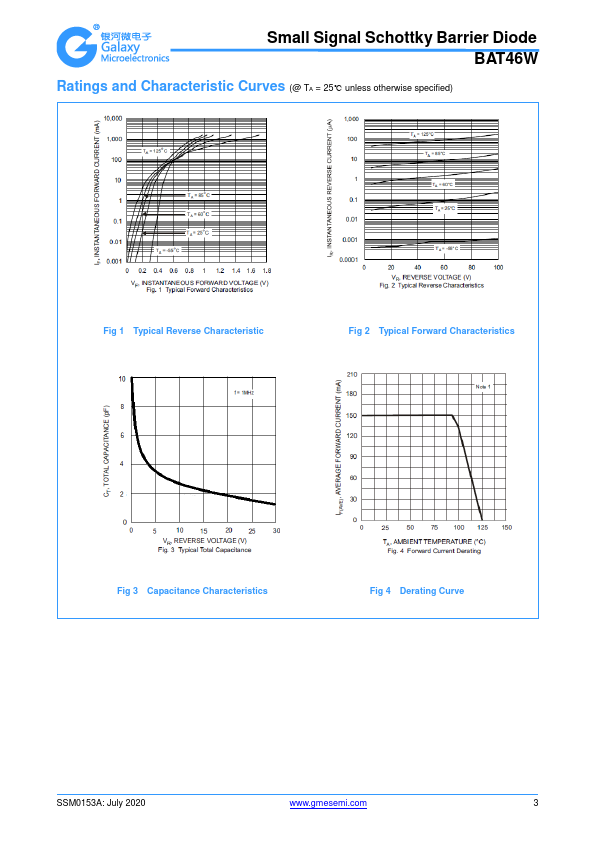

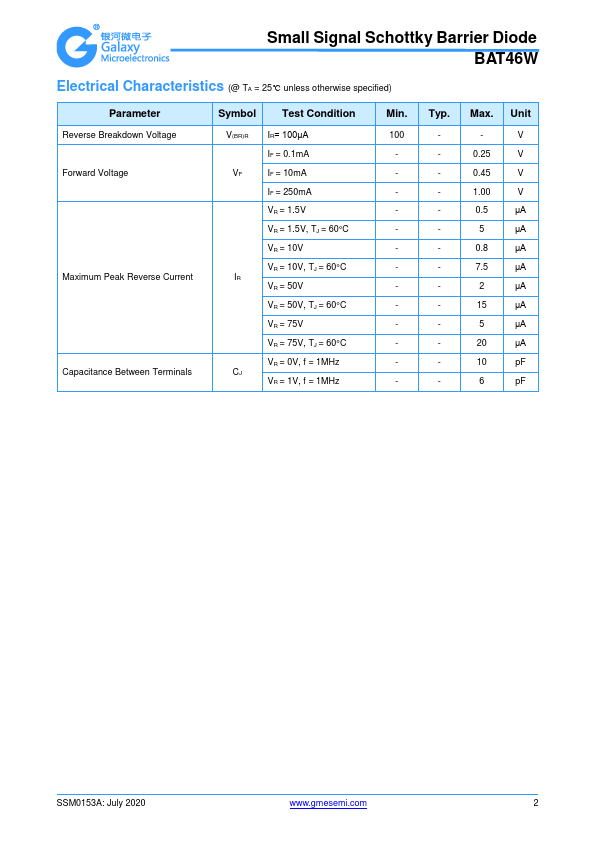

Small Signal Schottky Barrier Diode...
