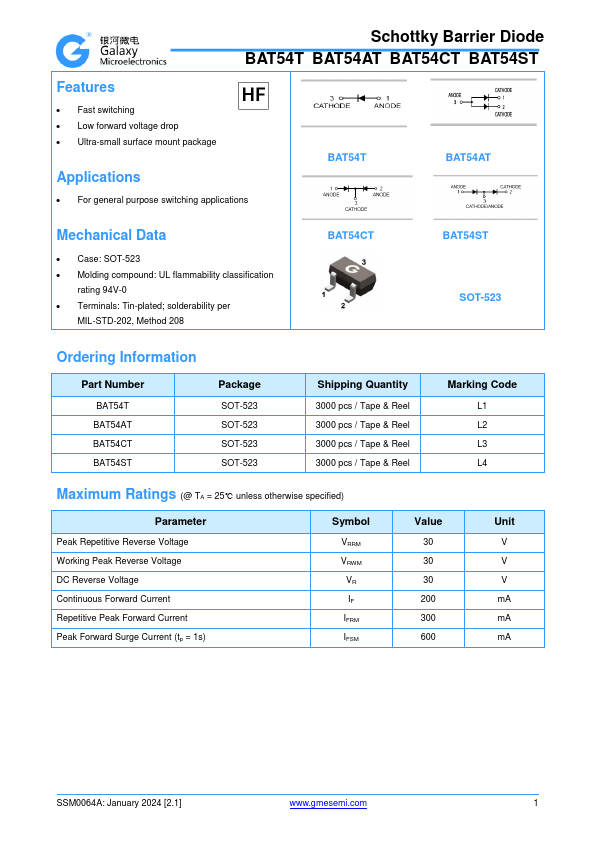

Datasheet Summary
Schottky Barrier Diode BAT54T BAT54AT BAT54CT BAT54ST
Features
- Fast switching
- Low forward voltage drop
- Ultra-small surface mount package
Applications
- For general purpose switching applications
BAT54T
BAT54AT
Mechanical Data
- Case: SOT-523
- Molding pound: UL flammability classification rating 94V-0
- Terminals: Tin-plated; solderability per
MIL-STD-202, Method 208
BAT54ST SOT-523
Ordering Information
Part Number
BAT54T BAT54AT BAT54CT BAT54ST
Package
SOT-523 SOT-523 SOT-523 SOT-523
Shipping Quantity
3000 pcs / Tape & Reel 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel
Marking Code
L1 L2 L3 L4
Maximum Ratings (@ TA = 25℃ unless otherwise...
