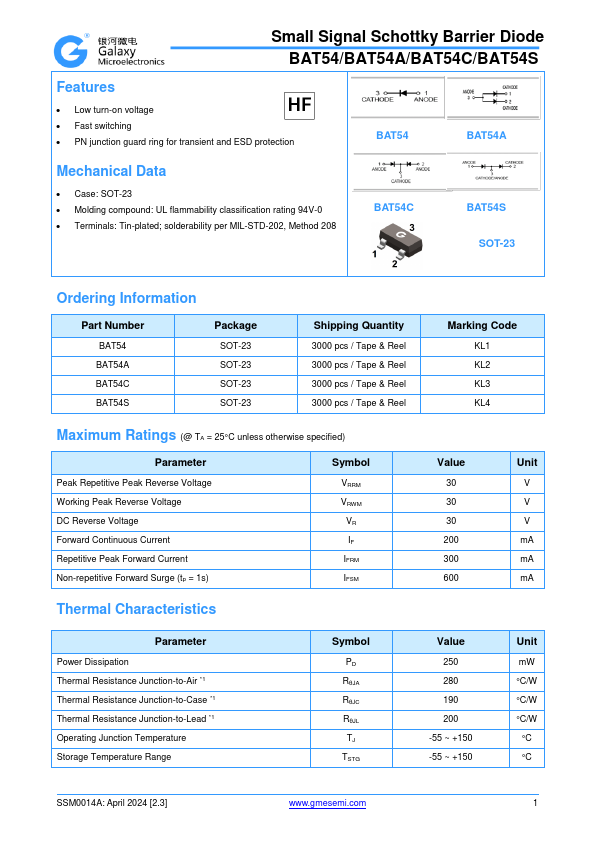

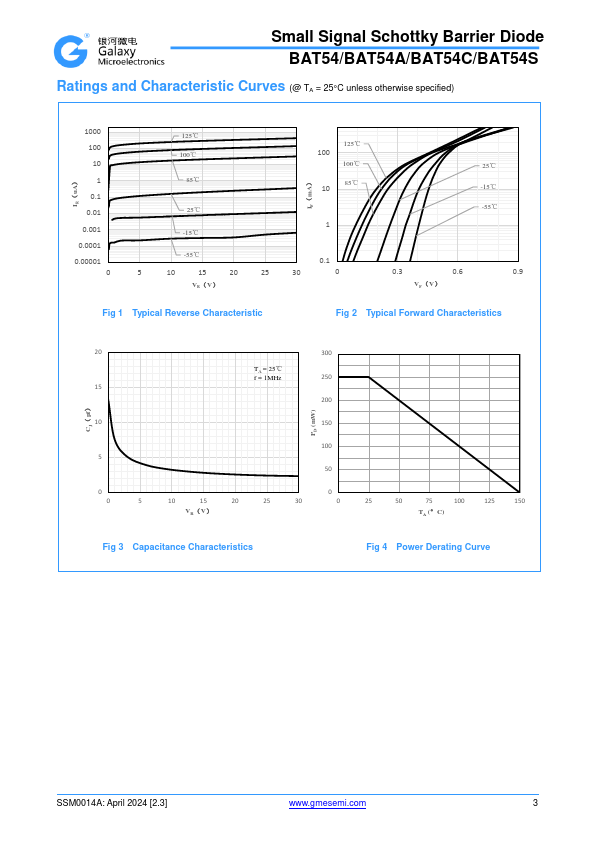

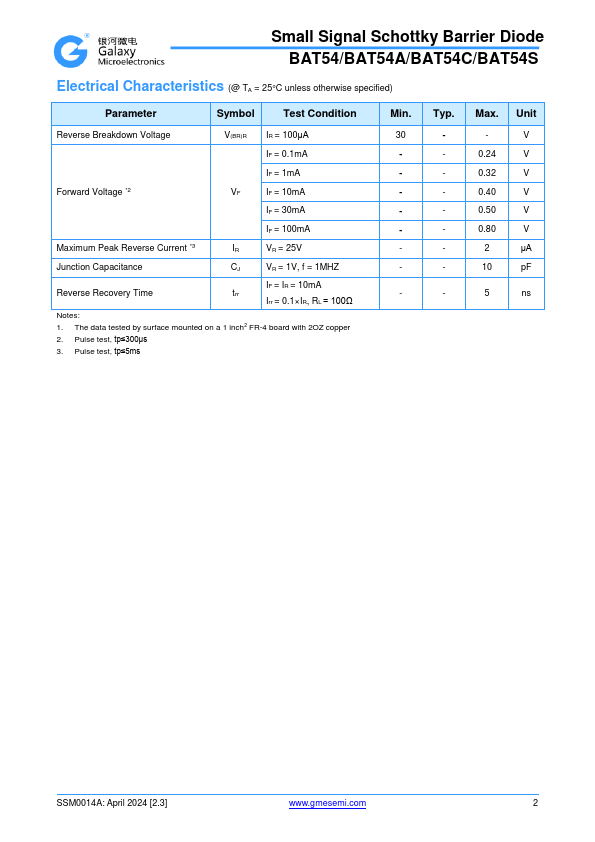

BAT54S Datasheet Small Signal Schottky Barrier Diode

Manufacturer: Galaxy Microelectronics

Overview: Small Signal Schottky Barrier Diode BAT54/BAT54A/BAT54C/BAT54S.

This datasheet includes multiple variants, all published together in a single manufacturer document.

Key Features

  • Low turn-on voltage.
  • Fast switching.
  • PN junction guard ring for transient and ESD protection BAT54 BAT54A Mechanical Data.
  • Case: SOT-23.
  • Molding compound: UL flammability classification rating 94V-0.
  • Terminals: Tin-plated; solderability per MIL-STD-202, Method 208 BAT54C BAT54S SOT-23 Ordering Information Part Number BAT54 BAT54A BAT54C BAT54S Package SOT-23 SOT-23 SOT-23 SOT-23 Shipping Quantity 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel 3000 pcs / Tap.
