BAT64-06 Overview

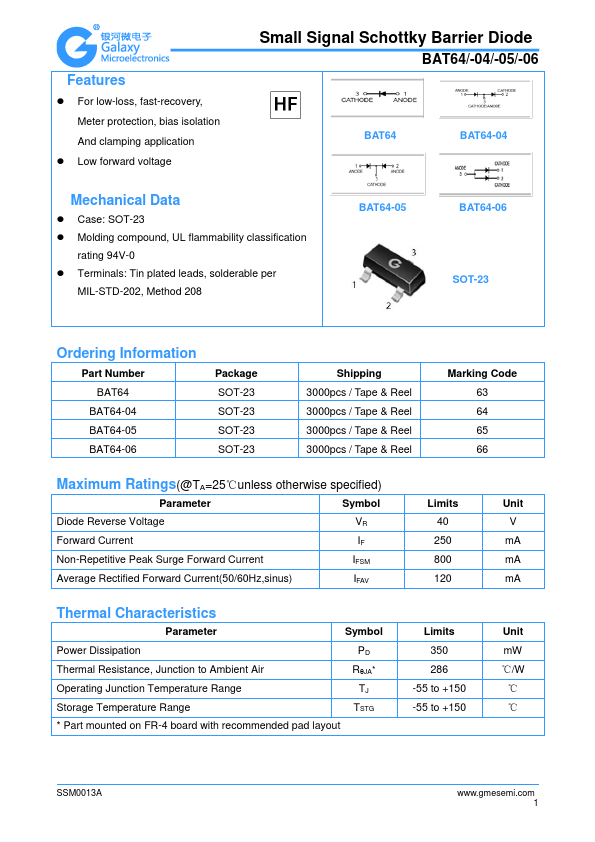

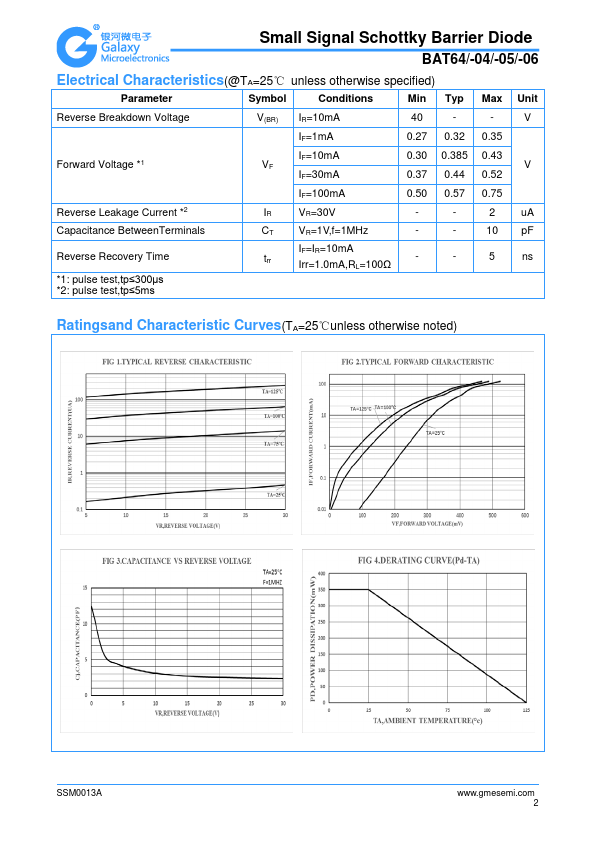

Features For low-loss, fast-recovery, Meter protection, bias isolation And clamping application Low forward voltage Small Signal Schottky Barrier Diode BAT64/-04/-05/-06 BAT64 BAT64-04 Case: SOT-23 Molding pound, UL flammability classification rating 94V-0 Terminals: pulse test,tp≤5ms CT VR=1V,f=1MHz - trr IF=IR=10mA - Irr=1.0mA,RL=100Ω - 10 pF - 5 ns Ratingsand Characteristic Curves(TA=25℃unless otherwise noted)...
BAT64-06 Key Features
- For low-loss, fast-recovery, Meter protection, bias isolation And clamping application
- Low forward voltage
- Case: SOT-23
- Molding pound, UL flammability classification
- Part mounted on FR-4 board with remended pad layout
- 55 to +150 -55 to +150
- 1: pulse test,tp≤300μs -2: pulse test,tp≤5ms
- Irr=1.0mA,RL=100Ω
