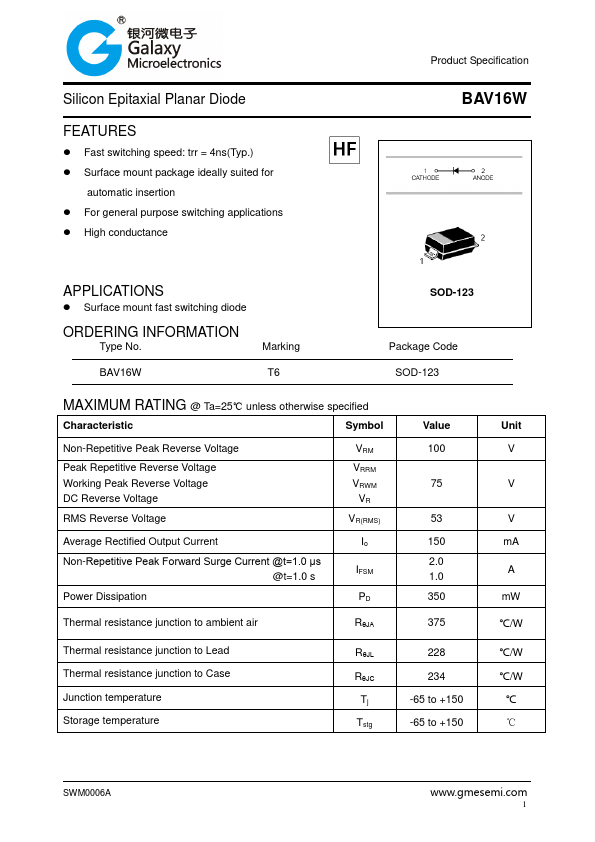

BAV16W Datasheet | Galaxy Microelectronics

Features - Fast switching speed: trr = 4ns(Typ.) - Surface mount package ideally suited for automatic insertion - For general purpose switching applications - High conductance Product Specification APPLICATIONS - Surface mount fast switching diode ORDERING INFORMATION Type No. Marking T6 SOD-123 Package Code SOD-123 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Characteristic Symbol Non-Repetitive Peak Reverse Voltage Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Reverse Voltage RMS Reverse Voltage VRM VRRM VRWM VR(RMS) Average Rectified Output Current Io Non-Repetitive Peak Forward Surge Current @t=1.0 μs @t=1.0 s IFSM Power Dissipation Thermal resistance junction to ambient air RθJA Thermal resistance junction to...
