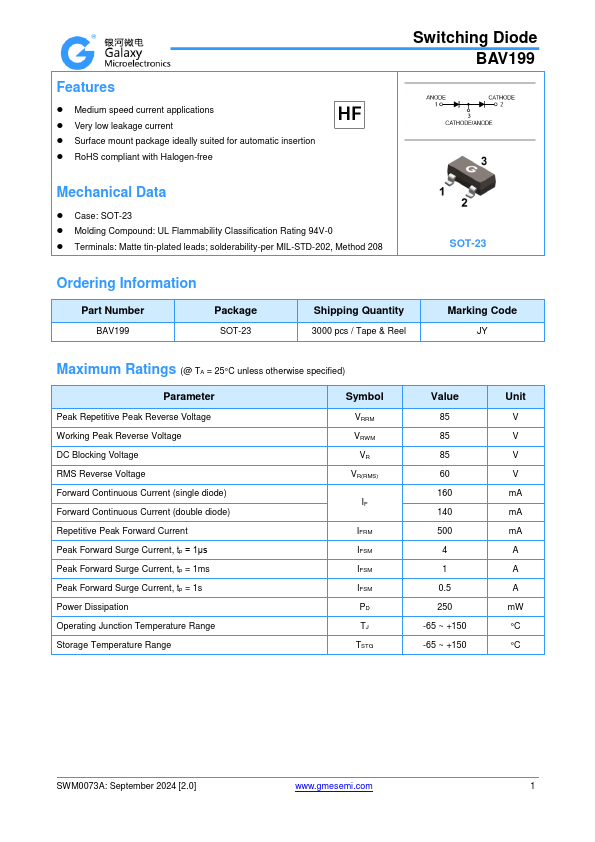

BAV199
BAV199 is Switching Diode manufactured by Galaxy Microelectronics.
Features
- Medium speed current applications
- Very low leakage current
- Surface mount package ideally suited for automatic insertion
- RoHS pliant with Halogen-free
Switching Diode BAV199
Mechanical Data
- Case: SOT-23
- Molding pound: UL Flammability Classification Rating 94V-0
- Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208
SOT-23
Ordering Information
Part Number
Package
SOT-23
Shipping Quantity
3000 pcs / Tape & Reel
Marking Code
Maximum Ratings (@ TA = 25°C unless otherwise specified)
Parameter
Peak Repetitive Peak Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Forward Continuous Current...
