BAV19WS - Silicon Epitaxial Planar Diode

Key Features

  • z Fast Switching Speed z Surface Mount Package Ideally Suited For Pb Lead-free Automatic Insertion z For General Purpose Switching.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BAV19WS SURFACE MOUNT FAST SWITCHING DIODE SEMTECH
BAV19WS SMALL SIGNAL DIODES General Semiconductor
BAV19WS SURFACE MOUNT FAST SWITCHING DIODE WON-TOP
BAV19WS Two Terminals SMD Switching Diodes TAITRON
BAV19WS 250mW Small Signal Diodes MCC

Other Datasheets by Galaxy Microelectronics

Part Number Description
BAV19W High Voltage Switching Diode
BAV199 Dual surface mount low leakage diode
BAV199DW Surface Mount Fast Switching Diodes
BAV19L Surface mount switching diode
BAV16L Silicon Epitaxial Planar Diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

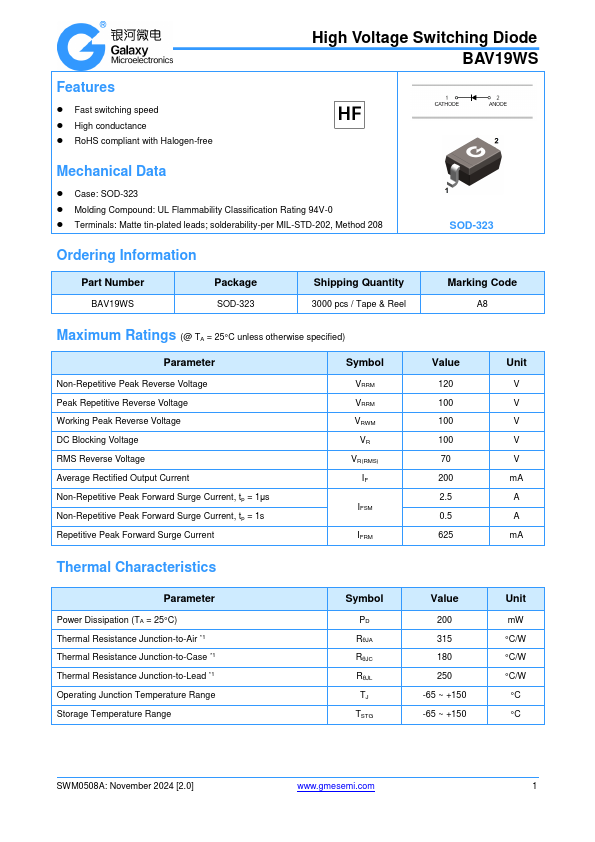

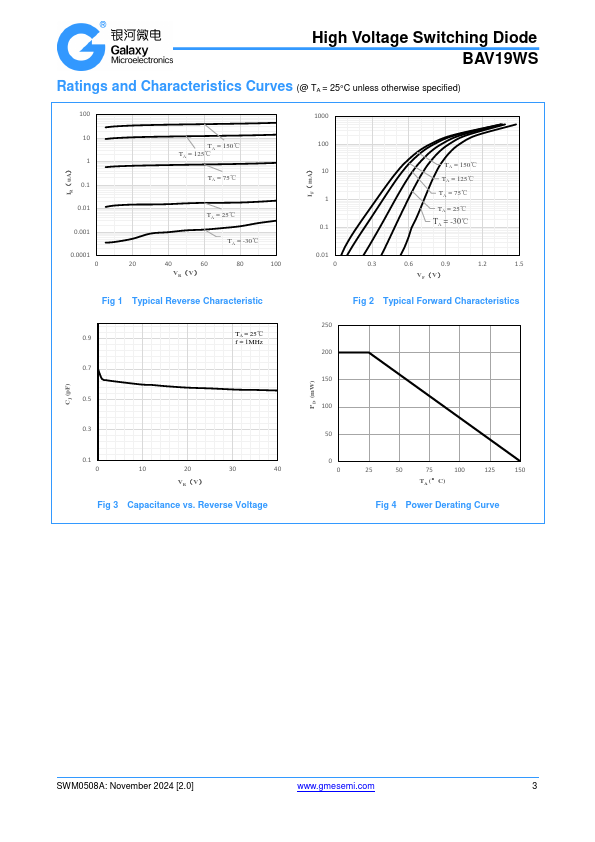

Production specification Silicon Epitaxial Planar Diode BAV19WS/BAV20WS/BAV21WS FEATURES z Fast Switching Speed z Surface Mount Package Ideally Suited For Pb Lead-free Automatic Insertion z For General Purpose Switching Applications z High Conductance APPLICATIONS z Surface mount fast switching diode ORDERING INFORMATION Type No. Marking BAV19WS BAV20WS BAV21WS A8 T2 T3 SOD-323 Package Code SOD-323 SOD-323 SOD-323 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Characteristic Symbol BAV19WS BAV20WS Repetitive Peak Reverse Voltage Working Peak Reverse Voltage DC Reverse Voltage RMS Reverse Voltage Average Rectified Output Current Non-Repetitive Peak Forward Surge Current VRRM VRWM VR VR(RMS) Io 120 100 71 200 200 150 106 @t=1.0 μs IFSM @t=1.0 s 2.5 0.
