BAV23 - Surface mount switching diode

Key Features

  • Continuous reverse voltage:max.200V.
  • Switching speed:50ns.
  • Repetitive peak reverse voltage:max.250V Pb Lead-free.
  • Repetitive peak forward current:max.625mA BAV23.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BAV23 Dual high-voltage switching diodes NXP
BAV23 Small Signal Diode MCC
BAV23 DUAL SURFACE MOUNT SWITCHING DIODE Diodes
BAV23 Silicon Epitaxial Planar Diodes JGD
BAV23 General Purpose Double Diode Kexin

Other Datasheets by Galaxy Microelectronics

Part Number Description
BAV20L Surface mount switching diode
BAV20WS Silicon Epitaxial Planar Diode
BAV21L Surface mount switching diode
BAV21WS Silicon Epitaxial Planar Diode
BAV16L Silicon Epitaxial Planar Diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

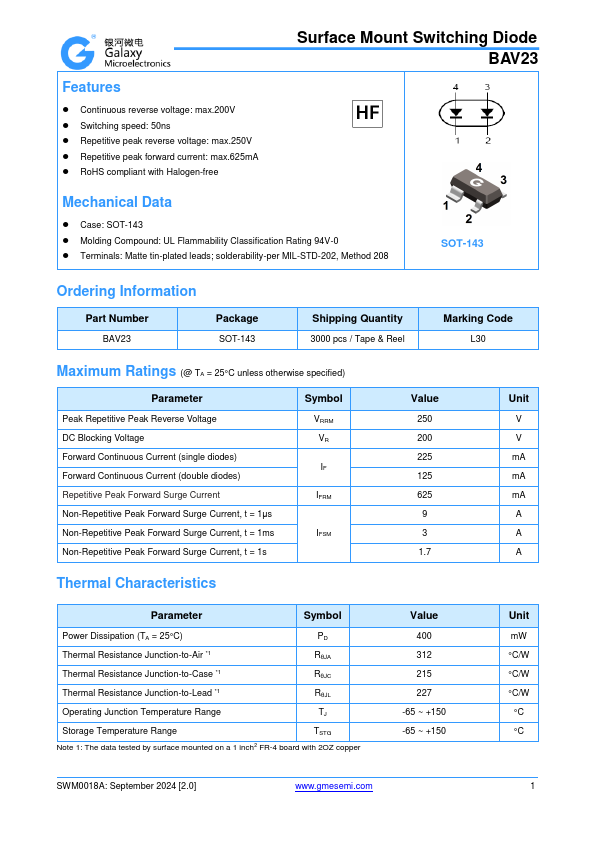

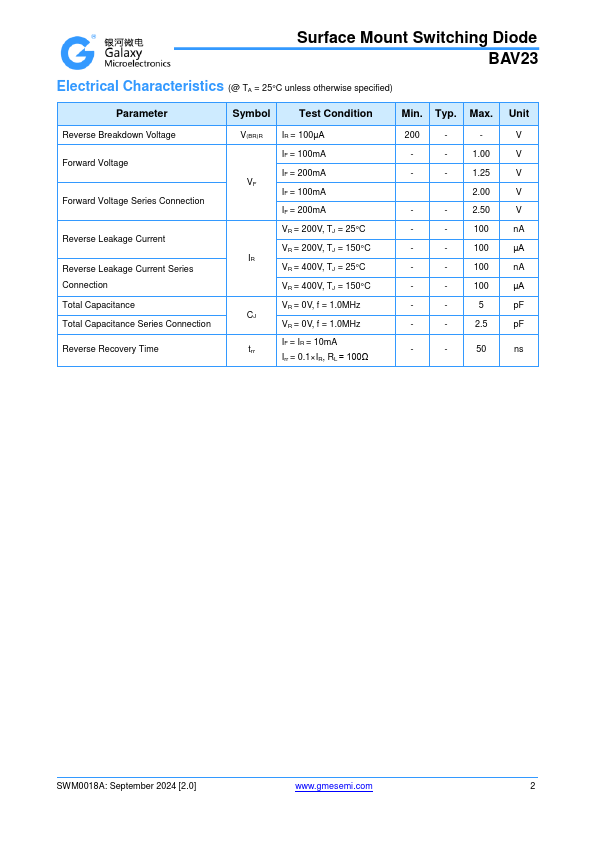

Production specification Surface mount switching diode FEATURES  Continuous reverse voltage:max.200V  Switching speed:50ns.  Repetitive peak reverse voltage:max.250V Pb Lead-free  Repetitive peak forward current:max.625mA BAV23 APPLICATIONS  General application. ORDERING INFORMATION SOT-143 Type No. BAV23 Marking L30 Package Code SOT-143 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Characteristic Symbol Limits Repetitive Peak Reverse Voltage VRRM 250 Continuous Reverse Voltage Continuous forward current single diodes double diodes VR IF Repetitive peak forward current Surge current t=1μs t=1ms t=1s IFRM IFSM Power Dissipation Pd 200 225 125 625 9 3 1.
