BC846W Datasheet

Manufacturer: Galaxy Microelectronics

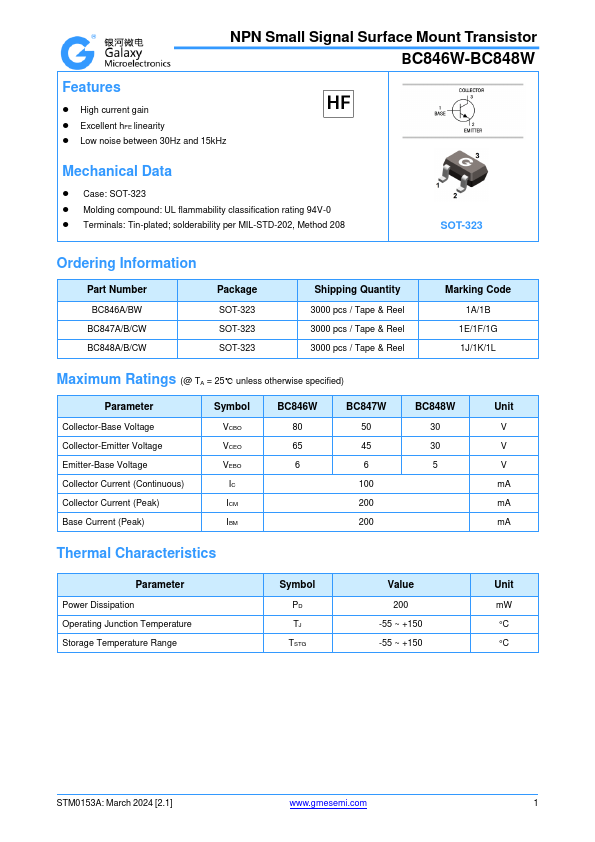

BC846W datasheet preview

Datasheet Details

Part number	BC846W
Datasheet	BC846W-GME.pdf
File Size	311.56 KB
Manufacturer	Galaxy Microelectronics
Description	NPN Small Signal Surface Mount Transistor

BC846W Overview

NPN Small Signal Surface Mount Transistor BC846W-BC848W.

BC846W Key Features

High current gain
Excellent hFE linearity
Low noise between 30Hz and 15kHz
Case: SOT-323
Molding pound: UL flammability classification rating 94V-0
Terminals: Tin-plated; solderability per MIL-STD-202, Method 208
55 ~ +150 -55 ~ +150

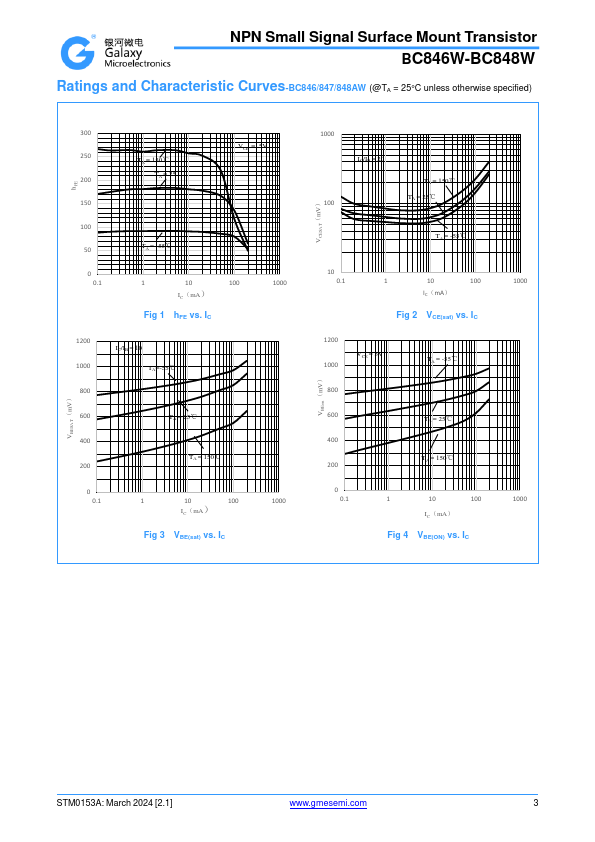

DC Current Gain
DC Current Gain
Collector-Emitter Saturation Voltage
