Galaxy Century Microelectronics BC847PN
Small Surface Mount Transistor
| Part No. | BC847PN |
|---|---|
| Datasheet | BC847PN Download |
| Manufacturer | Galaxy Century Microelectronics |
| Description | Small Surface Mount Transistor |
| Buy | Stock & Price |

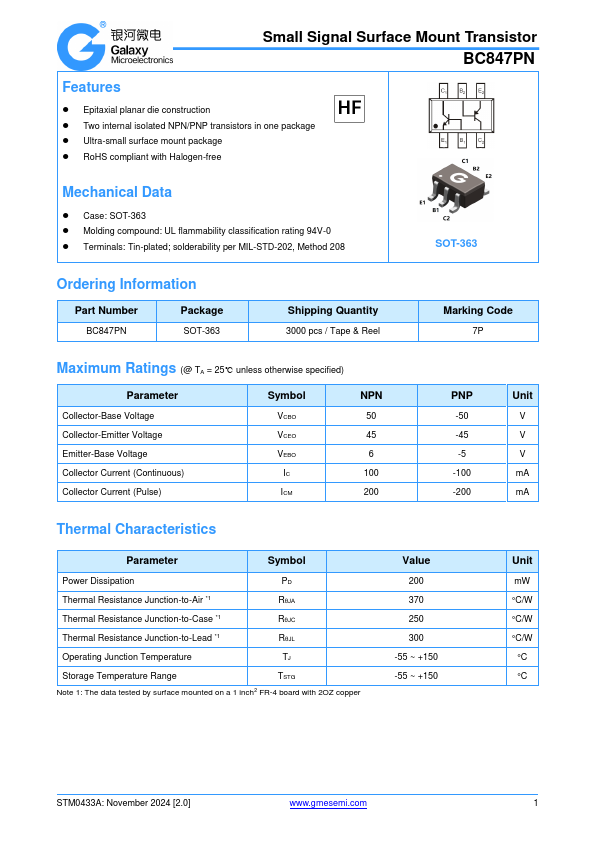

FEATURES
● Epitaxial planar die construction● Two internal isolated NPN/PNP transistors in one package
● Ultra-small surface mount package
● RoHS compliant with Halogen-free
MECHANICAL DATA
● Case: SOT-363● Molding compound: UL flammability classification rating 94V-0
● Terminals: Tin-plated; solderability per MIL-STD-202, Method 208 SOT-363 Ordering Information Part Number BC847PN Package SOT-363 Shipping Quantity 3000 pcs / Tape & Reel Marking Code 7P
MAXIMUM RATINGS
(@ TA = 25℃ unless otherwise specified) Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current (Continuous) Collector Current (Pulse) Symbol VCBO VCEO VEBO IC ICM NPN 50 45 6 100 200 PNP -50 -45 -5 -100 -200 Unit V V V mA mA Thermal Characteristics Parameter Symbol Power Dissipation PD Thermal Resistance Junction-to-Air *1 RθJA Thermal Resistance Junction-to-Case *1 RθJC Thermal Resistance Junction-to-Lead *1 RθJL Operating Junction Temperature TJ Storage Temperature Range TST...
