Galaxy Century Microelectronics BCW65
NPN Silicon Epitaxial Planar Transistor
| Part No. | BCW65 |
|---|---|
| Datasheet | BCW65 Download |
| Manufacturer | Galaxy Century Microelectronics |
| Description | NPN Silicon Epitaxial Planar Transistor |
| Buy | Stock & Price |

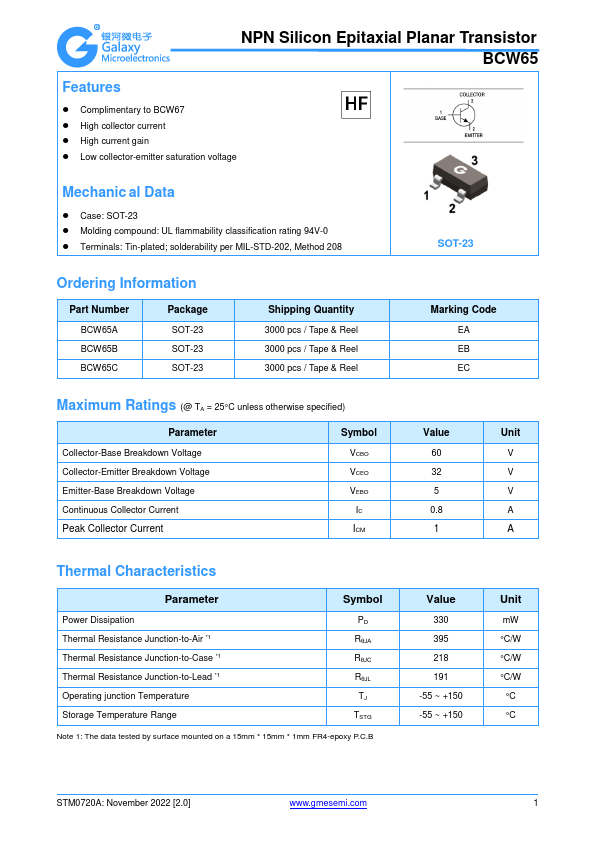

FEATURES
● Complimentary to BCW67● High collector current
● High current gain
● Low collector-emitter saturation voltage Mechanic al Data
● Case: SOT-23
● Molding compound: UL flammability classification rating 94V-0
● Terminals: Tin-plated; solderability per MIL-STD-202, Method 208 SOT-23 Ordering Information Part Number BCW65A BCW65B BCW65C Package SOT-23 SOT-23 SOT-23 Shipping Quantity 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel Marking Code EA EB EC
MAXIMUM RATINGS
(@ TA = 25°C unless otherwise specified) Parameter Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage Emitter-Base Breakdown Voltage Continuous Collector Current Peak Collector Current Symbol VCBO VCEO VEBO IC ICM Value 60 32 5 0.8 1 Unit V V V A A Thermal Characteristics Parameter Symbol Power Dissipation Thermal Resistance Junction-to-Air *1 Thermal Resistance Junction-to-Case *1 Thermal Resistance Junction-to-Lead *1 Operating junction Temperature Storage Temperature Range P...
