BCX70K
BCX70K is Silicon Epitaxial Planar Transistor manufactured by Galaxy Microelectronics.
- Part of the BCX70 comparator family.
- Part of the BCX70 comparator family.

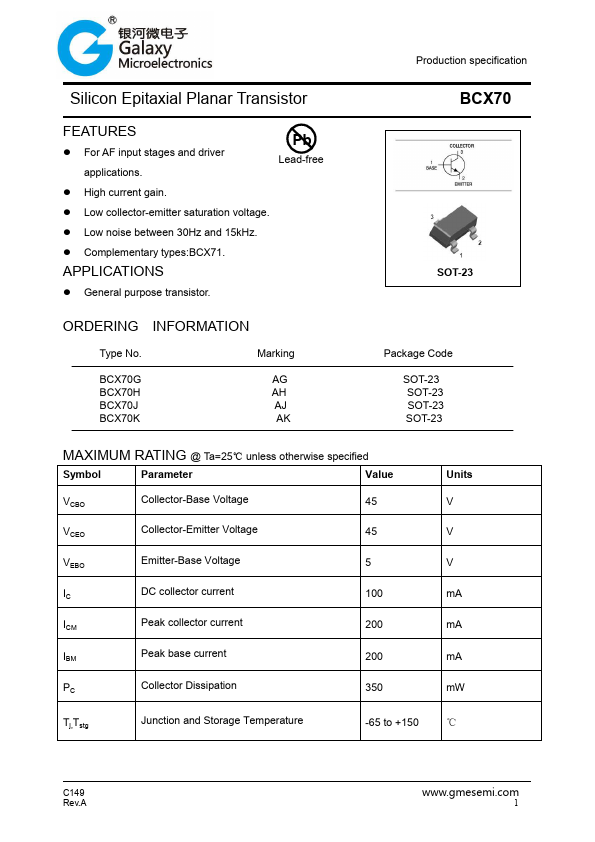

Production specification
Silicon Epitaxial Planar Transistor
Features
- For AF input stages and driver applications.
Pb
Lead-free
- High current gain.
- Low collector-emitter saturation voltage.
- Low noise between 30Hz and 15kHz.
- plementary types:BCX71.
APPLICATIONS
- General purpose transistor.
ORDERING INFORMATION
Type No.
Marking
BCX70G
BCX70H
BCX70J
BCX70
SOT-23
Package Code SOT-23 SOT-23 SOT-23 SOT-23
MAXIMUM RATING @ Ta=25℃ unless otherwise specified
Symbol
Parameter
Value
VCBO
Collector-Base Voltage
VCEO
Collector-Emitter...
