BL1013 is Phototransistor Photocoupler manufactured by Galaxy Microelectronics.
- Part of the BL1010 comparator family.
- Part of the BL1010 comparator family.

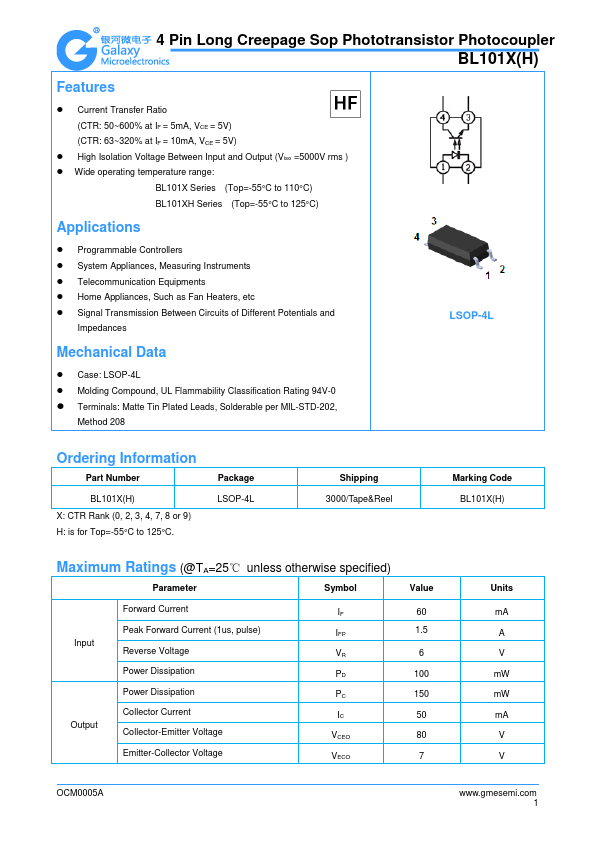

4 Pin Long Creepage Sop Phototransistor Photocoupler BL101X(H)
Features
- Current Transfer Ratio (CTR: 50~600% at IF = 5m A, VCE = 5V) (CTR: 63~320% at IF = 10m A, VCE = 5V)
- High Isolation Voltage Between Input and Output (Viso =5000V rms )
- Wide operating temperature range:
BL101X Series (Top=-55°C to 110°C) BL101XH Series (Top=-55°C to 125°C)
Applications
- Programmable Controllers
- System Appliances, Measuring Instruments
- Telemunication Equipments
- Home Appliances, Such as Fan Heaters, etc
- Signal Transmission Between Circuits of Different Potentials and
Impedances
Mechanical Data
- Case: LSOP-4L
- Molding pound, UL Flammability Classification Rating 94V-0
- Terminals: Matte Tin Plated Leads, Solderable per MIL-STD-202,
Method 208
LSOP-4L
Ordering Information
Part Number
BL101X(H) X: CTR Rank (0, 2, 3, 4, 7, 8 or 9) H: is for Top=-55°C to 125°C.
Package LSOP-4L
Shipping 3000/Tape&Reel
Marking Code BL101X(H)

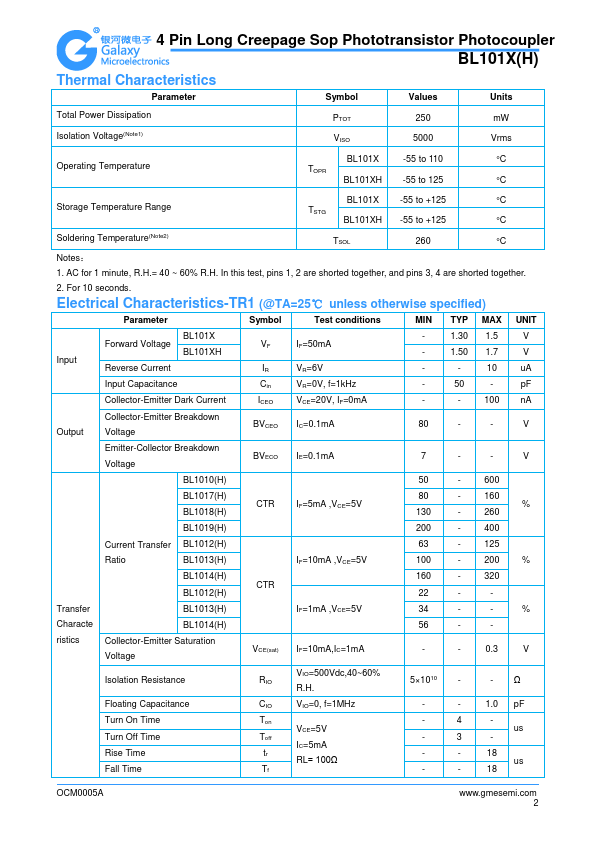

Maximum Ratings (@TA=25℃ unless otherwise specified)
Parameter
Symbol
Input Output
Forward Current Peak Forward Current (1us, pulse) Reverse Voltage Power Dissipation Power Dissipation Collector Current Collector-Emitter Voltage Emitter-Collector...
