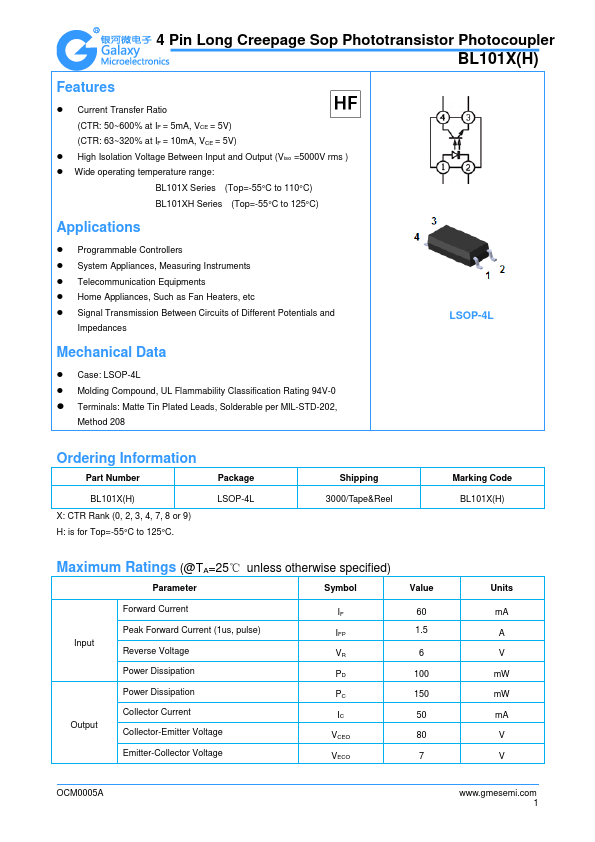

BL1013H Description
4 Pin Long Creepage Sop Phototransistor Photocoupler BL101X(H).
BL1013H Key Features
- Current Transfer Ratio (CTR: 50~600% at IF = 5mA, VCE = 5V) (CTR: 63~320% at IF = 10mA, VCE = 5V)
- High Isolation Voltage Between Input and Output (Viso =5000V rms )
- Wide operating temperature range
