BL1017 - Phototransistor Photocoupler

This page provides the datasheet information for the BL1017, a member of the BL1010 Phototransistor Photocoupler family.

Product Overview

GME

📥 Download Datasheet

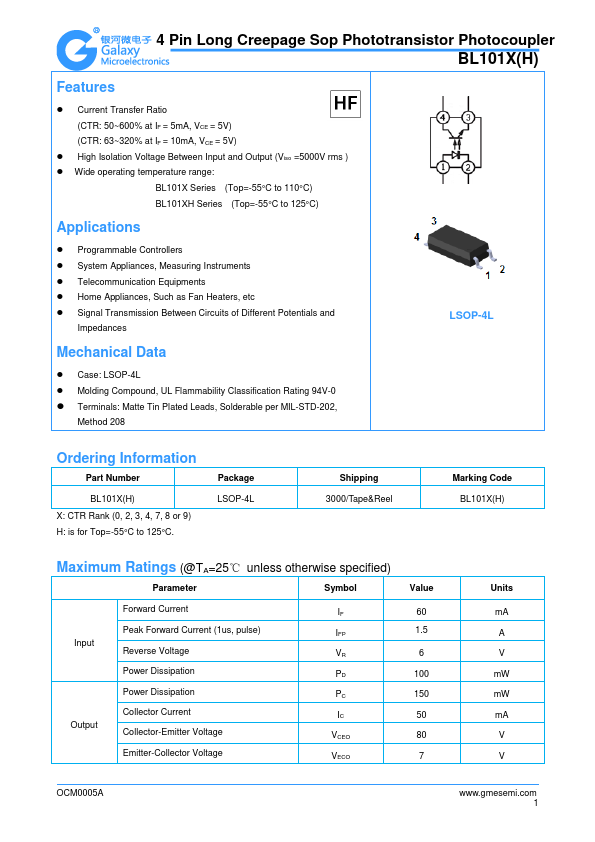

BL1017 Phototransistor Photocoupler by GME - Datasheet Preview — Datasheet preview – BL1017

Datasheet Details

Part number	BL1017
Manufacturer	GME
File Size	1.02 MB
Description	Phototransistor Photocoupler
Datasheet	BL1017 Datasheet

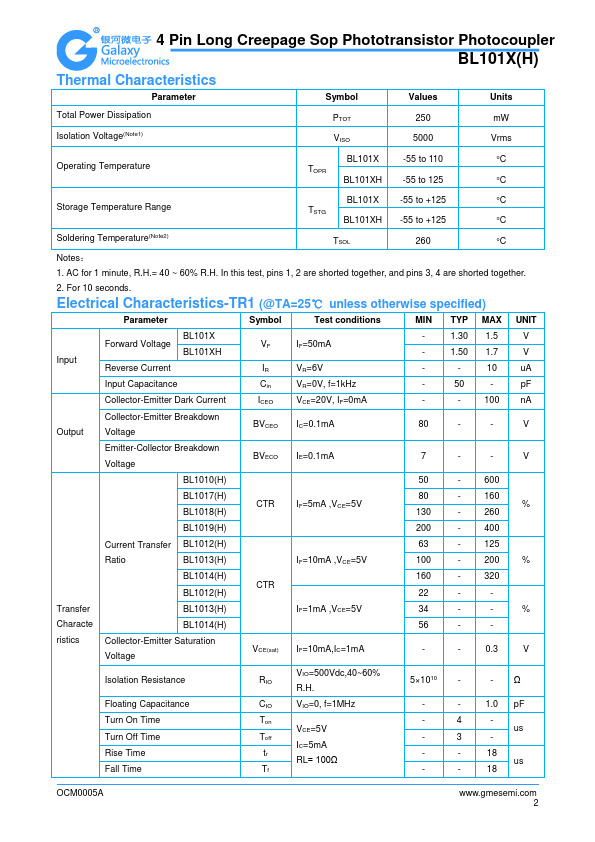

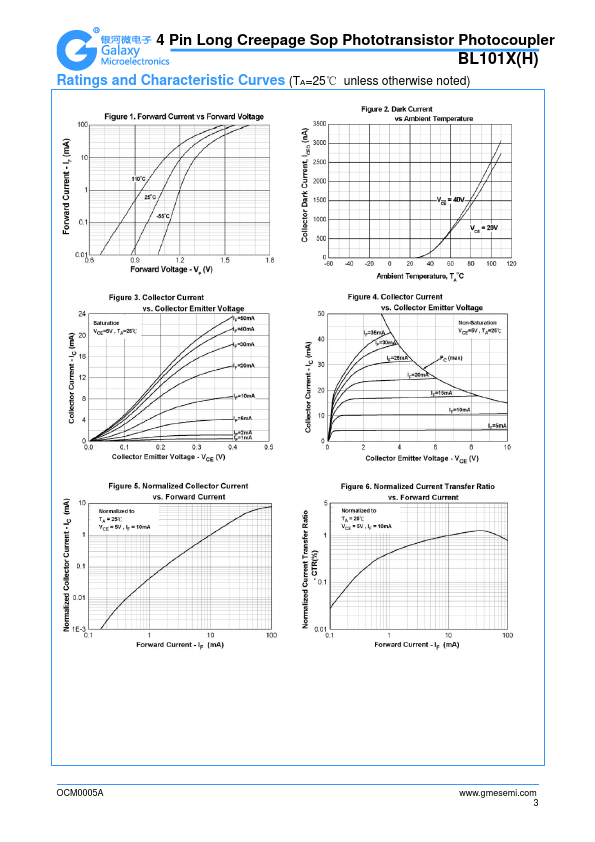

Additional preview pages of the BL1017 datasheet.

BL1017 Product details

Features

Current Transfer Ratio (CTR: 50~600% at IF = 5mA, VCE = 5V) (CTR: 63~320% at IF = 10mA, VCE = 5V).
High Isolation Voltage Between Input and Output (Viso =5000V rms ).
Wide operating temperature range: BL101X Series (Top=-55°C to 110°C) BL101XH Series (Top=-55°C to 125°C).
