BL1012 - Phototransistor Photocoupler

This page provides the datasheet information for the BL1012, a member of the BL1010 Phototransistor Photocoupler family.

Features

  • Current Transfer Ratio (CTR: 50~600% at IF = 5mA, VCE = 5V) (CTR: 63~320% at IF = 10mA, VCE = 5V).
  • High Isolation Voltage Between Input and Output (Viso =5000V rms ).
  • Wide operating temperature range: BL101X Series (Top=-55°C to 110°C) BL101XH Series (Top=-55°C to 125°C).

📥 Download Datasheet

Datasheet preview – BL1012

Datasheet Details

Part number BL1012
Manufacturer Galaxy Microelectronics
File Size 1.02 MB
Description Phototransistor Photocoupler
Datasheet download datasheet BL1012 Datasheet

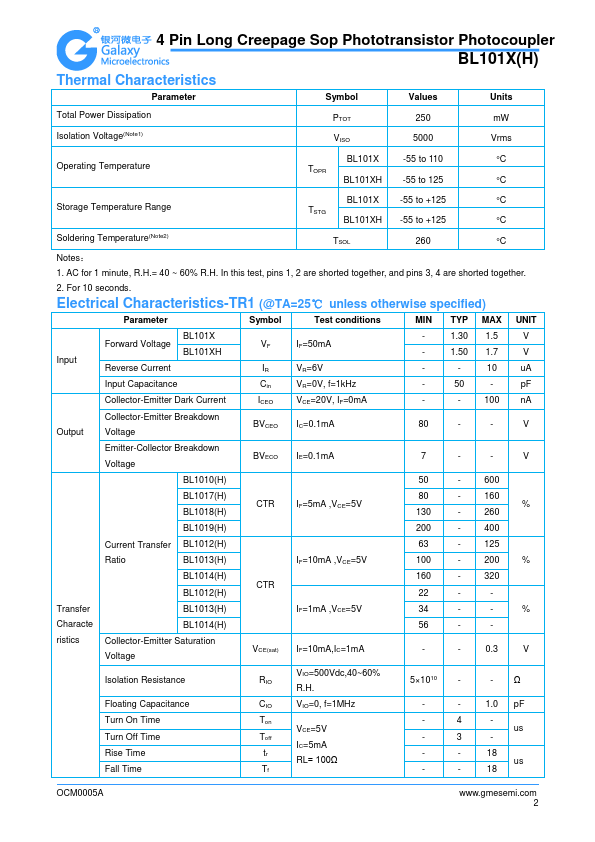

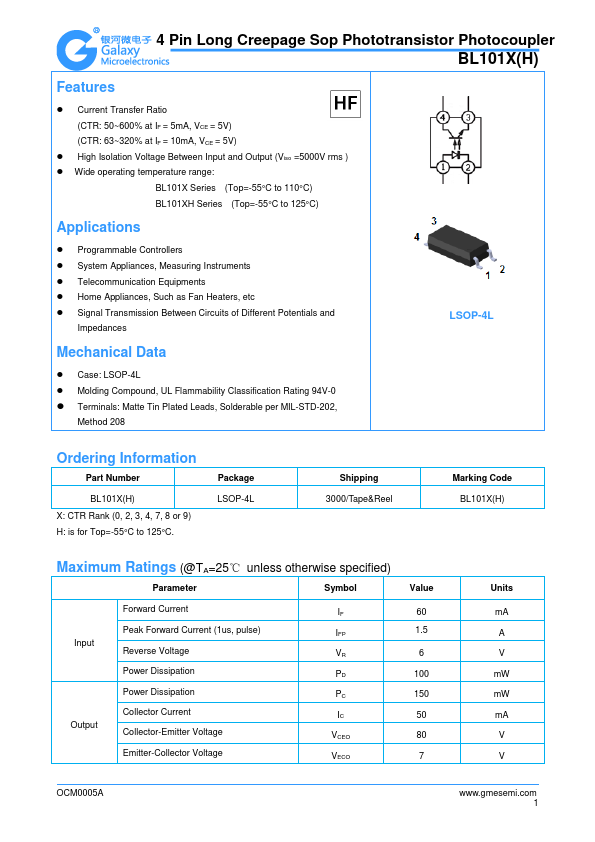

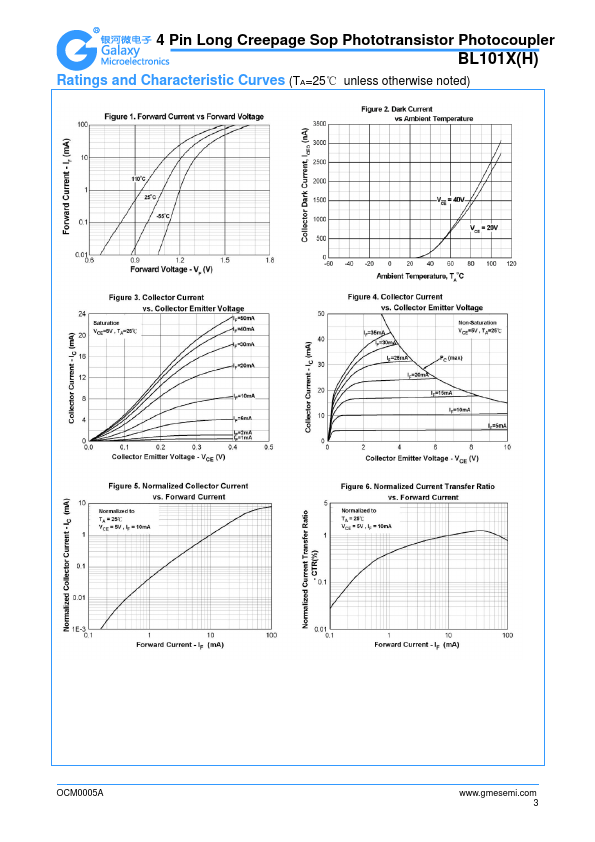

Additional preview pages of the BL1012 datasheet.

📁 Similar Datasheet

Other Datasheets by GME
  • BL1012 - Phototransistor Photocoupler
  • BL1012H - Phototransistor Photocoupler
  • BL1012H - Phototransistor Photocoupler
  • BL1010 - Phototransistor Photocoupler
  • BL1010H - Phototransistor Photocoupler
  • BL1013 - Phototransistor Photocoupler
  • BL1013 - Phototransistor Photocoupler
  • BL1013H - Phototransistor Photocoupler

Full PDF Text Transcription

Click to expand full text
4 Pin Long Creepage Sop Phototransistor Photocoupler BL101X(H) Features  Current Transfer Ratio (CTR: 50~600% at IF = 5mA, VCE = 5V) (CTR: 63~320% at IF = 10mA, VCE = 5V)  High Isolation Voltage Between Input and Output (Viso =5000V rms )  Wide operating temperature range: BL101X Series (Top=-55°C to 110°C) BL101XH Series (Top=-55°C to 125°C) Applications  Programmable Controllers  System Appliances, Measuring Instruments  Telecommunication Equipments  Home Appliances, Such as Fan Heaters, etc  Signal Transmission Between Circuits of Different Potentials and Impedances Mechanical Data  Case: LSOP-4L  Molding Compound, UL Flammability Classification Rating 94V-0  Terminals: Matte Tin Plated Leads, Solderable per MIL-STD-202, Method 208 LSOP-4L Ordering Information Part Number
