BL1018 - Phototransistor Photocoupler

This page provides the datasheet information for the BL1018, a member of the BL1010 Phototransistor Photocoupler family.

Product Overview

GME

📥 Download Datasheet

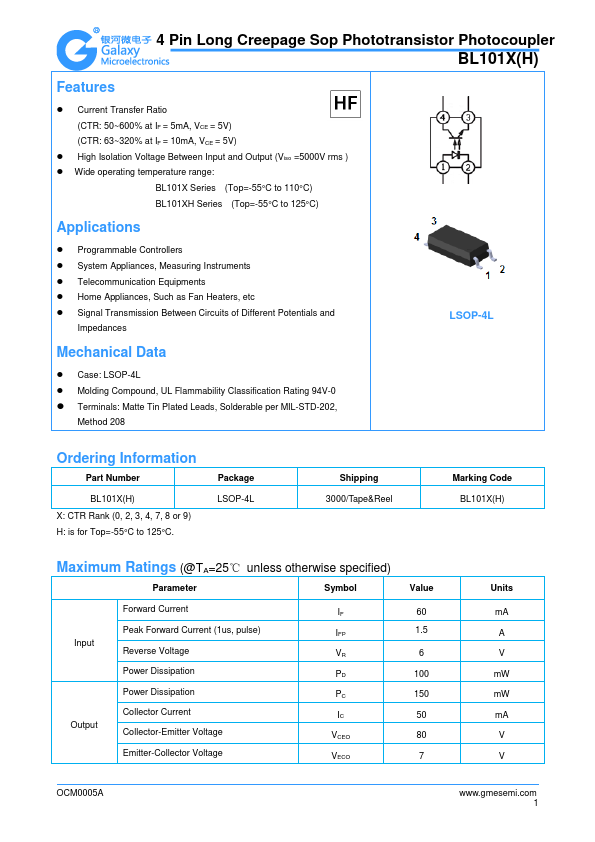

BL1018 Phototransistor Photocoupler by GME - Datasheet Preview — Datasheet preview – BL1018

Datasheet Details

Part number	BL1018
Manufacturer	GME
File Size	1.02 MB
Description	Phototransistor Photocoupler
Datasheet	BL1018 Datasheet

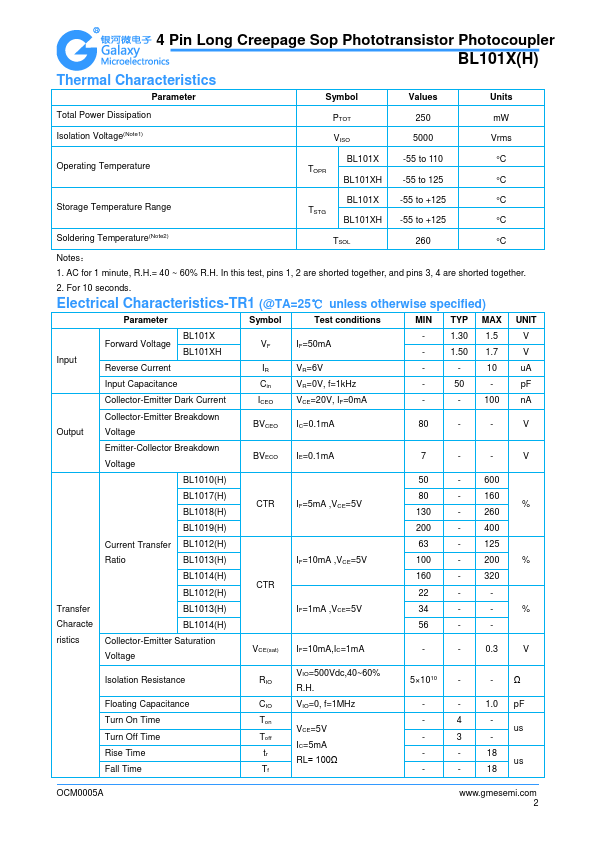

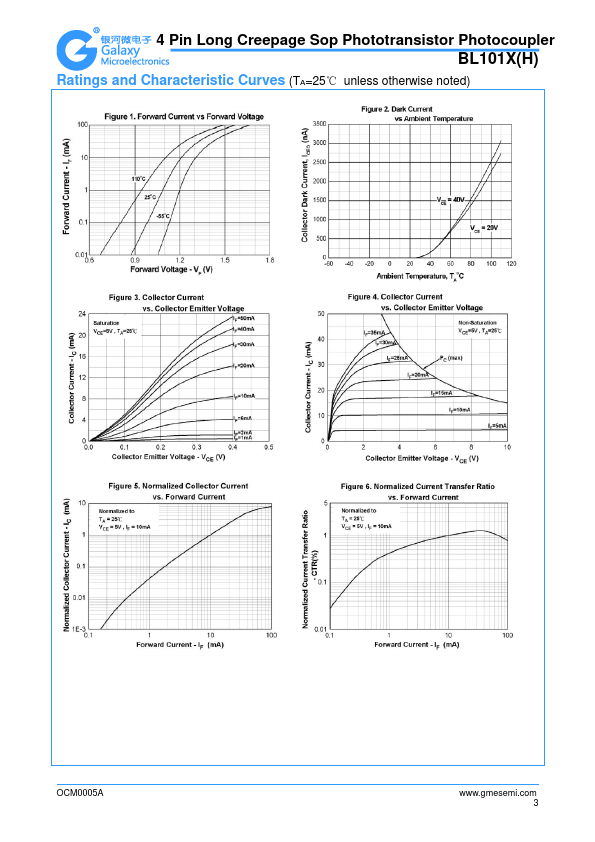

Additional preview pages of the BL1018 datasheet.

BL1018 Product details

Features

Current Transfer Ratio (CTR: 50~600% at IF = 5mA, VCE = 5V) (CTR: 63~320% at IF = 10mA, VCE = 5V).
High Isolation Voltage Between Input and Output (Viso =5000V rms ).
Wide operating temperature range: BL101X Series (Top=-55°C to 110°C) BL101XH Series (Top=-55°C to 125°C).
