BL1019H - Phototransistor Photocoupler

This page provides the datasheet information for the BL1019H, a member of the BL1010 Phototransistor Photocoupler family.

Product Overview

GME

📥 Download Datasheet

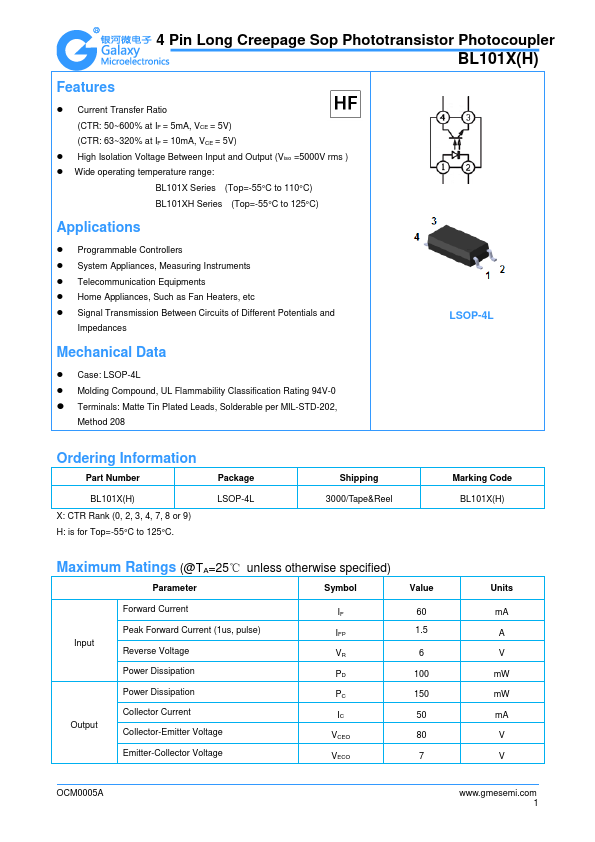

BL1019H Phototransistor Photocoupler by GME - Datasheet Preview — Datasheet preview – BL1019H

Datasheet Details

Part number	BL1019H
Manufacturer	GME
File Size	1.02 MB
Description	Phototransistor Photocoupler
Datasheet	BL1019H Datasheet

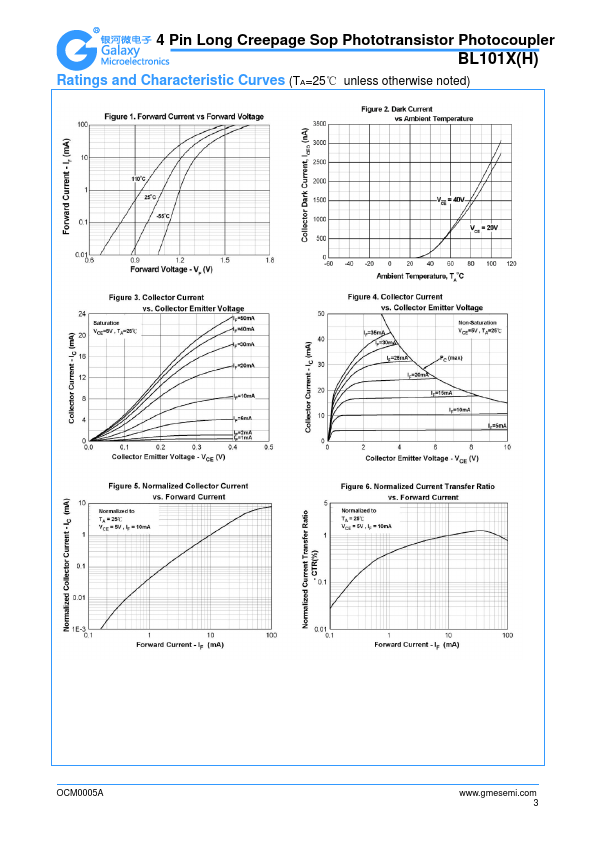

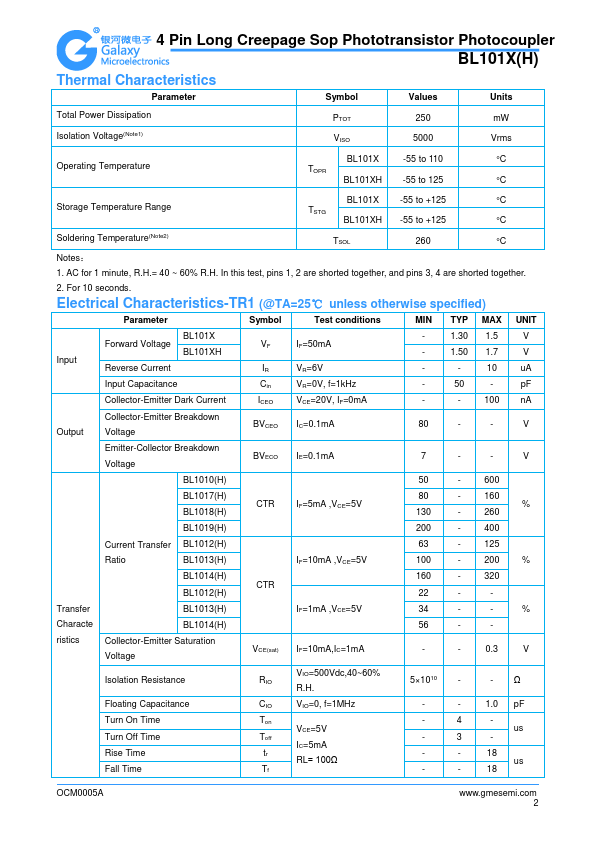

Additional preview pages of the BL1019H datasheet.

BL1019H Product details

Features

Current Transfer Ratio (CTR: 50~600% at IF = 5mA, VCE = 5V) (CTR: 63~320% at IF = 10mA, VCE = 5V).
High Isolation Voltage Between Input and Output (Viso =5000V rms ).
Wide operating temperature range: BL101X Series (Top=-55°C to 110°C) BL101XH Series (Top=-55°C to 125°C).
