BL14N25F - N-Channel Enhancement Mode MOSFET

Download the BL14N25F datasheet PDF (BL14N25 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for n-channel enhancement mode mosfet.

Features

  • Fast switching.
  • Low on resistance.
  • Low gate charge.
  • Low reverse transfer capacitances.
  • RoHS compliant with Halogen-free Mechanical Data.
  • Case: TO-220AB, TO-263, ITO-220AB.
  • Molding Compound: UL Flammability Classification Rating 94V-0.
  • Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 TO-220AB TO-263 ITO-220AB Ordering Information Part Number BL14N25 BL14N25B BL14N25F Package TO-220AB TO-263 ITO-220AB Shipping Quantity 50.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BL14N25-GME.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Other Datasheets by GME
  • BL14N25 - N-Channel Enhancement Mode MOSFET
  • BL14N25B - N-Channel Enhancement Mode MOSFET
  • BL1010 - Phototransistor Photocoupler
  • BL1010H - Phototransistor Photocoupler
  • BL1012 - Phototransistor Photocoupler
  • BL1012 - Phototransistor Photocoupler
  • BL1012H - Phototransistor Photocoupler
  • BL1012H - Phototransistor Photocoupler

Full PDF Text Transcription

Click to expand full text

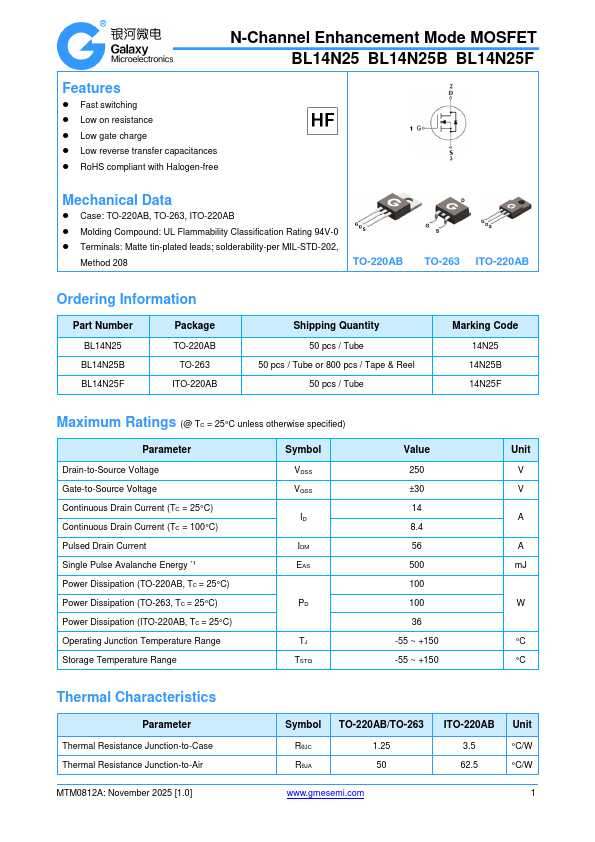

N-Channel Enhancement Mode MOSFET BL14N25 BL14N25B BL14N25F Features  Fast switching  Low on resistance  Low gate charge  Low reverse transfer capacitances  RoHS compliant with Halogen-free Mechanical Data  Case: TO-220AB, TO-263, ITO-220AB  Molding Compound: UL Flammability Classification Rating 94V-0  Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 TO-220AB TO-263 ITO-220AB Ordering Information Part Number BL14N25 BL14N25B BL14N25F Package TO-220AB TO-263 ITO-220AB Shipping Quantity 50 pcs / Tube 50 pcs / Tube or 800 pcs / Tape & Reel 50 pcs / Tube Marking Code 14N25 14N25B 14N25F Maximum Ratings (@ TC = 25°C unless otherwise specified) Parameter Drain-to-Source Voltage Gate-to-Source Voltage Continuous Drain Current (TC = 25°C) Continuous D
