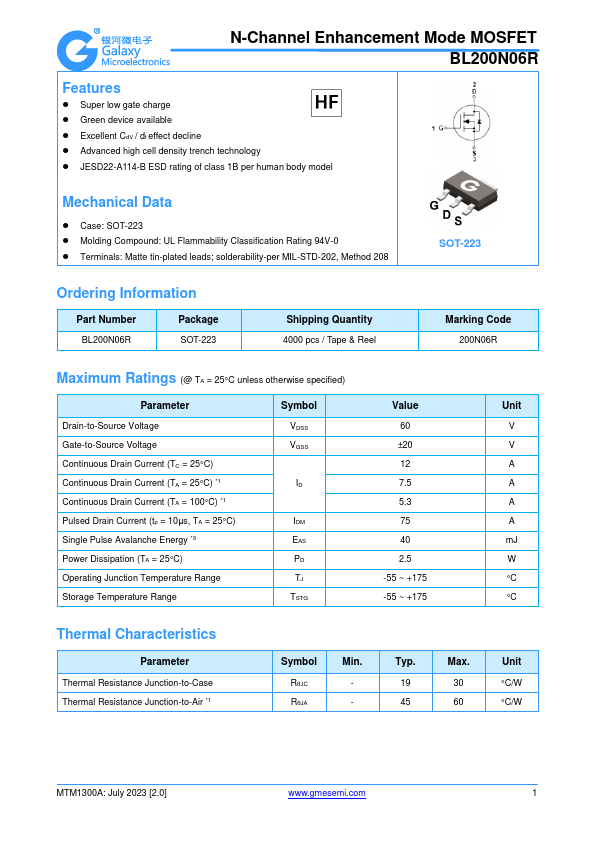

BL200N06R
Features
- Super low gate charge
- Green device available
- Excellent Cd V / dt effect decline
- Advanced high cell density trench technology
- JESD22-A114-B ESD rating of class 1B per human body model
Mechanical Data
- Case: SOT-223
- Molding pound: UL Flammability Classification Rating 94V-0
- Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208
SOT-223
Ordering Information
Part Number BL200N06R
Package SOT-223
Shipping Quantity 4000 pcs / Tape & Reel
Marking Code 200N06R
Maximum Ratings (@ TA = 25°C unless otherwise specified)
Parameter Drain-to-Source Voltage Gate-to-Source Voltage Continuous Drain Current (TC = 25°C) Continuous Drain Current (TA = 25°C)
- 1 Continuous Drain Current (TA = 100°C)
- 1 Pulsed Drain Current (tp = 10μs, TA = 25°C) Single Pulse Avalanche Energy
- 3 Power Dissipation (TA = 25°C) Operating Junction Temperature Range Storage Temperature Range
Symbol VDSS VGSS
IDM EAS PD TJ TSTG
Value 60 ±20 12 7.5 5.3 75 40 2.5
-55 ~ +175...
