BL300N06D
BL300N06D is manufactured by Galaxy Microelectronics.

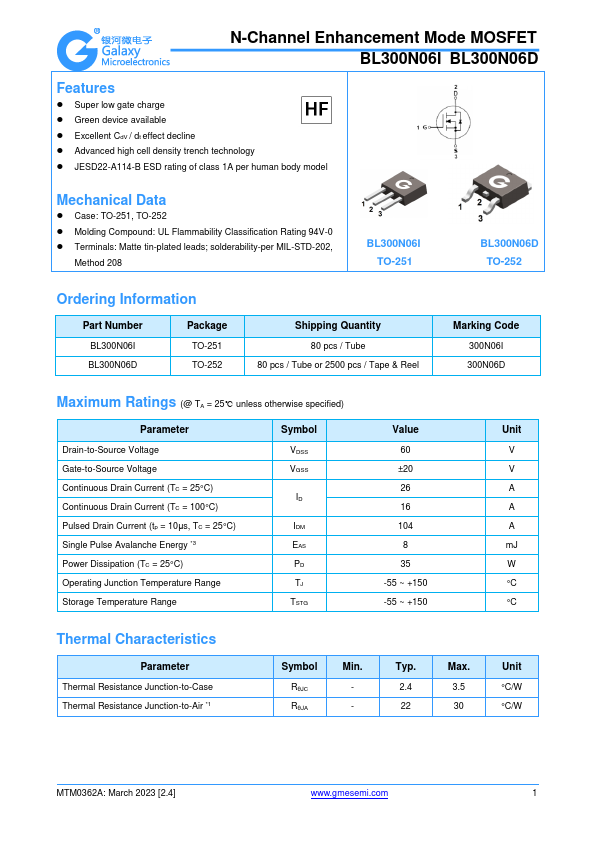

N-Channel Enhancement Mode MOSFET BL300N06I BL300N06D
Features
- Super low gate charge
- Green device available
- Excellent CdV / dt effect decline
- Advanced high cell density trench technology
- JESD22-A114-B ESD rating of class 1A per human body model
Mechanical Data
- Case: TO-251, TO-252
- Molding pound: UL Flammability Classification Rating 94V-0
- Terminals: Matte tin-plated leads; solderability-per MIL-STD-202,
Method 208
BL300N06I TO-251
BL300N06D TO-252
Ordering Information
Part Number BL300N06I BL300N06D
Package TO-251 TO-252
Shipping Quantity 80 pcs / Tube
80 pcs / Tube or 2500 pcs / Tape & Reel
Marking Code 300N06I 300N06D
Maximum Ratings (@ TA = 25℃ unless...
