BZD27C10P
BZD27C10P is manufactured by Galaxy Microelectronics.

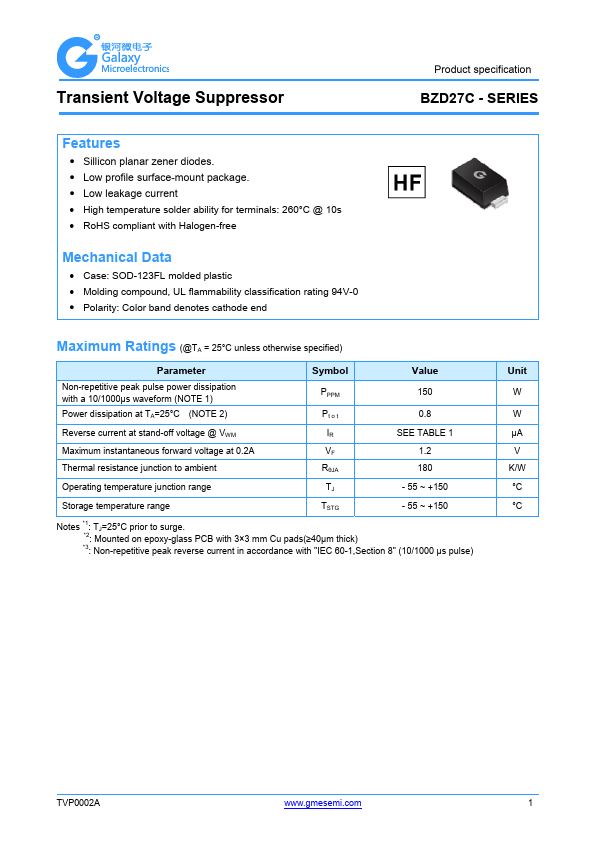

Transient Voltage Suppressor
Product specification
BZD27C
- SERIES
Features
- Sillicon planar zener diodes.
- Low profile surface-mount package.
- Low leakage current
- High temperature solder ability for terminals: 260°C @ 10s
- RoHS pliant with Halogen-free
Mechanical Data
- Case: SOD-123FL molded plastic
- Molding pound, UL flammability classification rating 94V-0
- Polarity: Color band denotes cathode end
Maximum Ratings (@TA = 25°C unless otherwise specified)
Parameter
Symbol
Value
Non-repetitive peak pulse power dissipation with a 10/1000μs waveform (NOTE 1)
Power dissipation at TA=25°C (NOTE 2)
PPPM
Pt o t
Reverse current at stand-off voltage @ VWM
