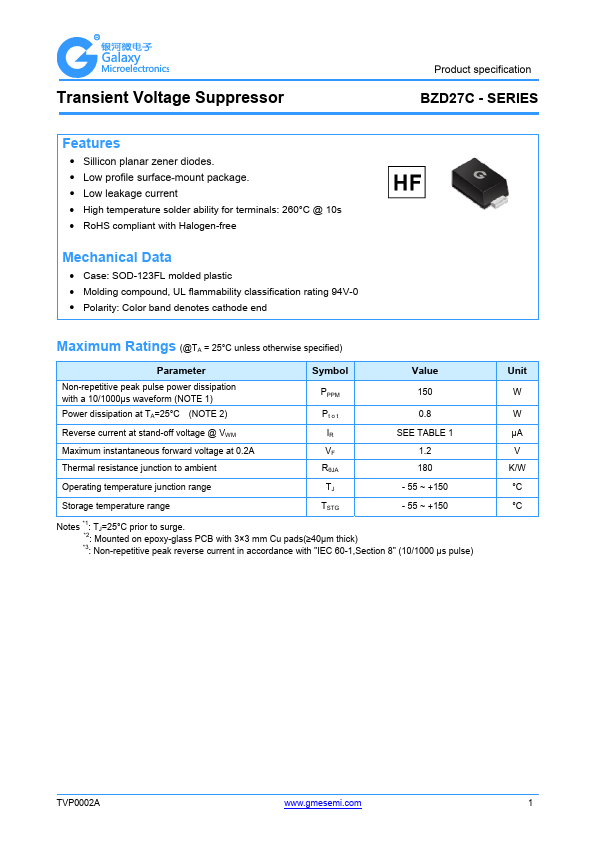

BZD27C22P Datasheet Transient Voltage Suppressor

Manufacturer: Galaxy Microelectronics

Overview: Transient Voltage Suppressor Product specification BZD27C - SERIES.

This datasheet includes multiple variants, all published together in a single manufacturer document.

Key Features

  • Sillicon planar zener diodes.
  • Low profile surface-mount package.
  • Low leakage current.
  • High temperature solder ability for terminals: 260°C @ 10s.
  • RoHS compliant with Halogen-free Mechanical Data.
  • Case: SOD-123FL molded plastic.
  • Molding compound, UL flammability classification rating 94V-0.
  • Polarity: Color band denotes cathode end Maximum Ratings (@TA = 25°C unless otherwise specified) Parameter Symbol Value Non-repetitive peak pulse power dissipati.
