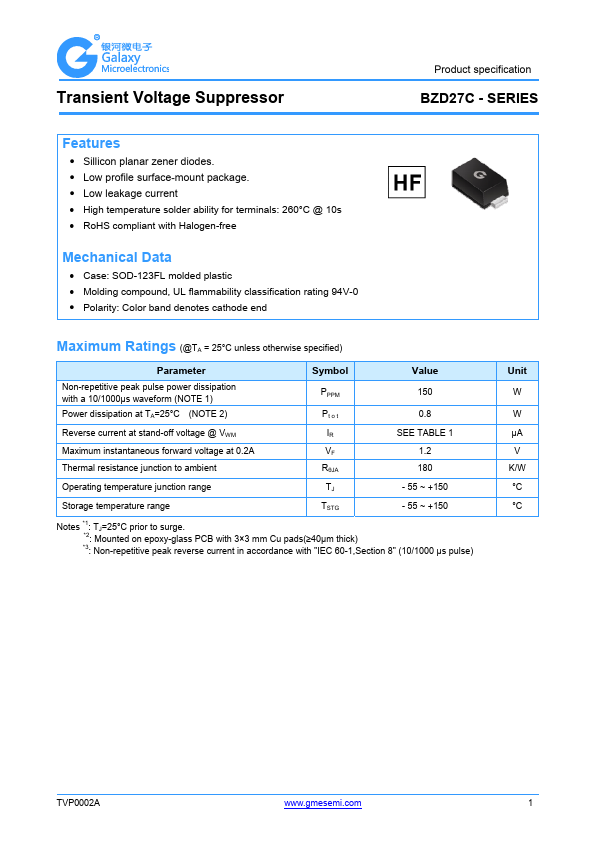

BZD27C27P
Overview
- Sillicon planar zener diodes.
- Low profile surface-mount package.
- Low leakage current
- High temperature solder ability for terminals: 260°C @ 10s
- RoHS compliant with Halogen-free Mechanical Data
- Case: SOD-123FL molded plastic
- Molding compound, UL flammability classification rating 94V-0
- Polarity: Color band denotes cathode end
