Galaxy Century Microelectronics DAN217
Surface Mount Switching Diode
| Part No. | DAN217 |
|---|---|
| Datasheet | DAN217 Download |
| Manufacturer | Galaxy Century Microelectronics |
| Description | Surface Mount Switching Diode |
| Buy | Stock & Price |

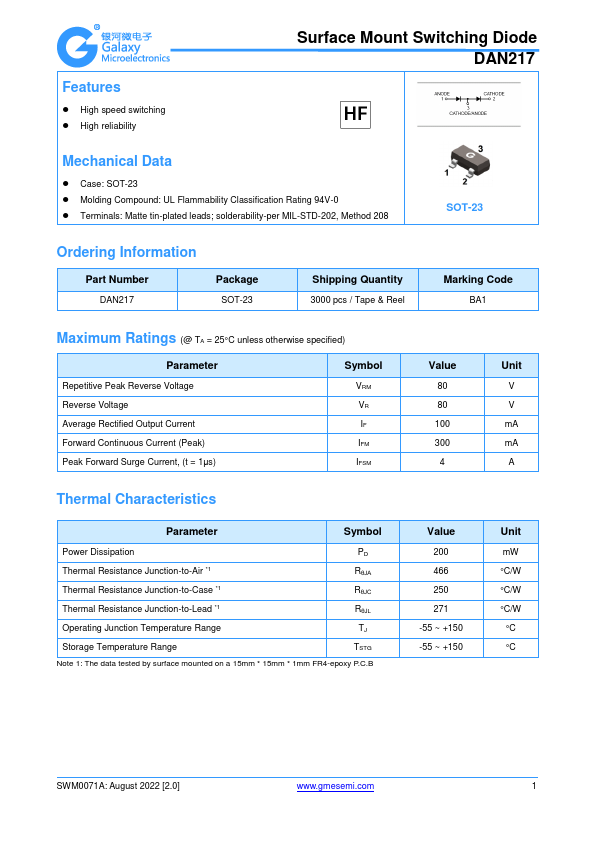

FEATURES
● High speed switching● High reliability Surface Mount Switching Diode DAN217
MECHANICAL DATA
● Case: SOT-23● Molding Compound: UL Flammability Classification Rating 94V-0
● Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 SOT-23 Ordering Information Part Number DAN217 Package SOT-23 Shipping Quantity 3000 pcs / Tape & Reel Marking Code BA1
MAXIMUM RATINGS
(@ TA = 25°C unless otherwise specified) Parameter Repetitive Peak Reverse Voltage Reverse Voltage Average Rectified Output Current Forward Continuous Current (Peak) Peak Forward Surge Current, (t = 1μs) Symbol VRM VR IF IFM IFSM Value 80 80 100 300 4 Unit V V mA mA A Thermal Characteristics Parameter Symbol Power Dissipation PD Thermal Resistance Junction-to-Air *1 RθJA Thermal Resistance Junction-to-Case *1 RθJC Thermal Resistance Junction-to-Lead *1 RθJL Operating Junction Temperature Range TJ Storage Temperature Range TSTG Note 1: The data tested by surface mounted on a 15mm * 15mm * 1mm FR4...
