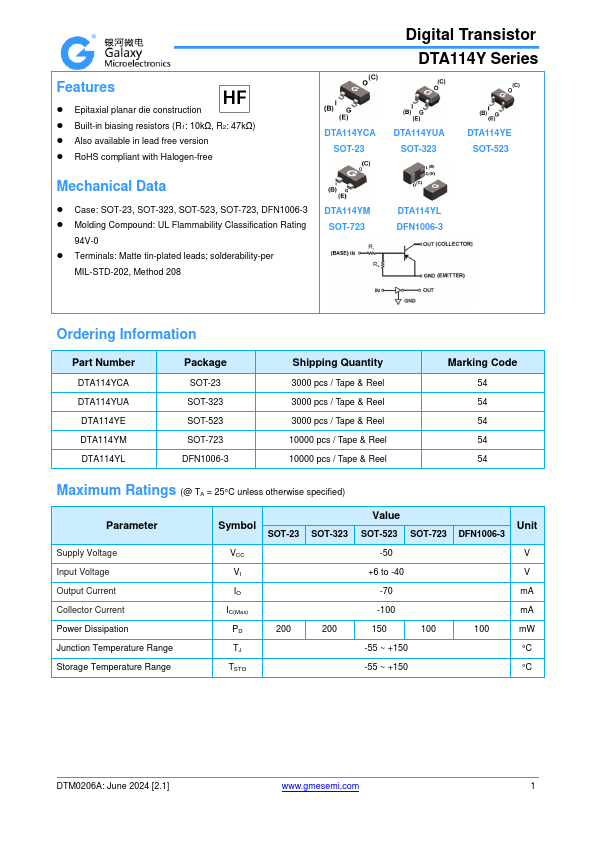

Datasheet Summary
Features
- Epitaxial planar die construction
- Built-in biasing resistors (R1: 10kΩ, R2: 47kΩ)
- Also available in lead free version
- RoHS pliant with Halogen-free
Digital Transistor DTA114Y Series
DTA114YCA SOT-23
DTA114YUA SOT-323
DTA114YE SOT-523
Mechanical Data
- Case: SOT-23, SOT-323, SOT-523, SOT-723, DFN1006-3
- Molding pound: UL Flammability Classification Rating
94V-0
- Terminals: Matte tin-plated leads; solderability-per
MIL-STD-202, Method 208
DTA114YM SOT-723
DTA114YL DFN1006-3
Ordering Information
Part Number
DTA114YCA DTA114YUA DTA114YE DTA114YM DTA114YL
Package
SOT-23 SOT-323 SOT-523 SOT-723 DFN1006-3
Shipping Quantity
3000 pcs / Tape & Reel 3000 pcs /...
