DTA114TM Datasheet Digital Transistor

Manufacturer: Galaxy Microelectronics

This datasheet includes multiple variants, all published together in a single manufacturer document.

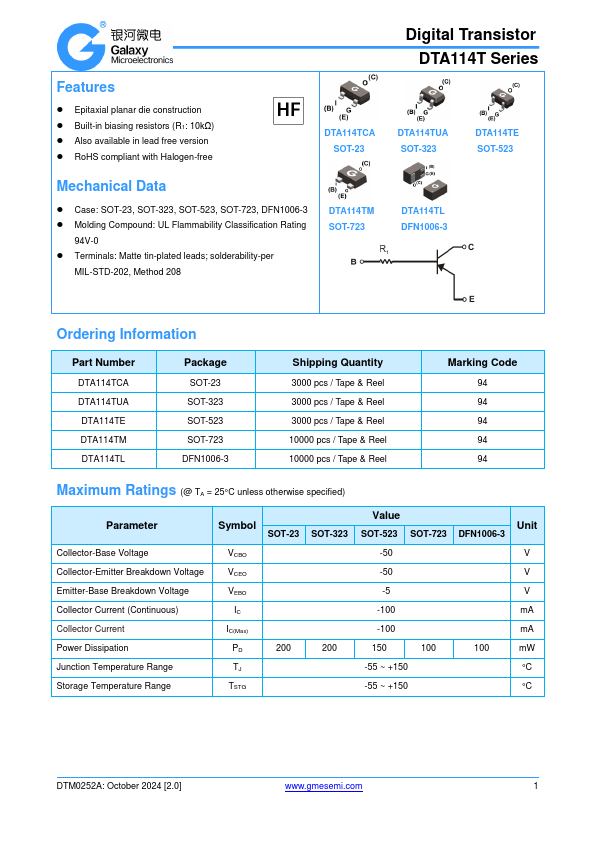

Datasheet Details

Epitaxial planar die construction.
Built-in biasing resistors (R1: 10kΩ).
Also available in lead free version.
RoHS compliant with Halogen-free Digital Transistor DTA114T Series DTA114TCA SOT-23 DTA114TUA SOT-323 DTA114TE SOT-523 Mechanical Data.
Case: SOT-23, SOT-323, SOT-523, SOT-723, DFN1006-3.
Molding Compound: UL Flammability Classification Rating 94V-0.
Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 DTA114TM SOT-723 D.
