DTA114TCA - Digital Transistor

Key Features

  • Epitaxial planar die construction.
  • Complementary NPN types available(DTC).
  • Built-in biasing resistor,R1 only.
  • Also available in lead free version. DTA(R1-only SERIES)CA Pb Lead-free.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DTA114TCA PNP Transistor JinYu
DTA114TCA PNP Digital Transistor JCET
DTA114TCA PNP Digital Transistors SeCoS
DTA114TCA PNP Digital Transistor MCC
DTA114TCA PNP Digital Transistor WILLAS

Other Datasheets by Galaxy Microelectronics

Part Number Description
DTA114TE Digital Transistor
DTA114TUA Digital Transistor
DTA114ECA Digital Transistor
DTA114EUA Digital Transistor
DTA124ECA Digital Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

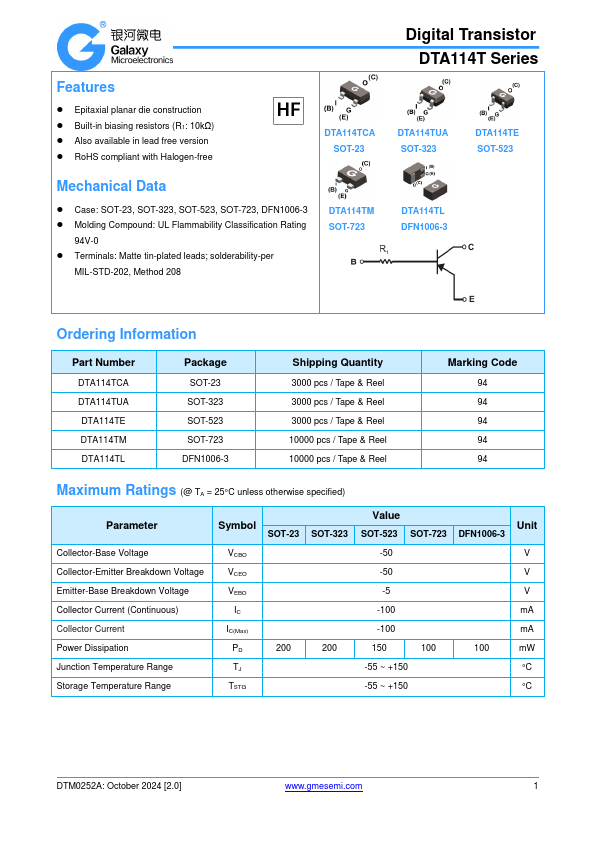

Production specification Digital Transistor FEATURES  Epitaxial planar die construction.  Complementary NPN types available(DTC).  Built-in biasing resistor,R1 only.  Also available in lead free version. DTA(R1-only SERIES)CA Pb Lead-free APPLICATIONS  The PNP style digital transistor. ORDERING INFORMATION Type No. Marking DTA114TCA DTA143TCA DTA144TCA 94 93 96 SOT-23 Package Code SOT-23 SOT-23 SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO Collector-Base Voltage -50 VCEO Collector-Emitter Voltage -50 VEBO IC(Max.
